Work Light Mounting Options For Tractors

Skip to comparison · Request a quote from Aurora

Work Light Mounting Options: Comparison Table

Why Tractor Work Light Mounts Fail First

A tractor work light lives in the worst vibration environment in agriculture. The vibration spectrum combines:

• Engine vibration — 25-150Hz continuous, transmitted through the chassis
• PTO vibration — 540/1000 RPM PTO adds 9-17Hz pulsation when engaged
• Implement shock — every furrow, every rock, every headland turn transmits impact through the 3-point hitch
• Field-edge bumps — 2-5g vertical shocks at 1-3Hz, repeated thousands of times per shift

A rigid mount transmits all of this to the LED package. Within 200-500 hours, solder joints crack at the LED-to-PCB interface, the driver IC separates from the board, and the light flickers or fails. This is why a 50,000-hour LED chip in a cheap rigid mount fails at 500 hours — the chip is fine, the mount killed it.

Aurora's work light mounting system includes rubber vibration isolators tuned to dampen the 9-17Hz PTO band and 25-150Hz engine band. Combined with 3-axis vibration validation per ISO 16750-3, this is what enables genuine 50,000+ hour field life.

ROPS Bracket Mount: The Standard For Tractors

The Roll-Over Protective Structure (ROPS) is the strongest, most accessible mounting point on any modern tractor. ROPS is a 50-75mm diameter steel tube running behind the operator, designed to bear the tractor's weight in a roll-over — easily strong enough for a 2-5kg work light array.

A proper ROPS bracket uses:

• U-bolt clamps sized to the ROPS tube diameter (50mm, 60mm, 75mm common)
• Stainless steel hardware (304 SS) — galvanized steel rusts within one season of fertilizer exposure
• Rubber isolation pad between bracket and tube — prevents metal-on-metal wear and damps vibration
• Adjustable angle — at least 30° tilt and 360° rotation for beam aiming

Aurora's ROPS bracket kit is 304 stainless steel with rubber isolation pads and a multi-axis adjustable head. The kit fits ROPS diameters from 50-75mm and supports lights up to 5kg (the largest Aurora work light is 2.4kg — substantial margin).

Magnetic Mount: Field Service Convenience, Not Permanent

Magnetic mounts are popular for utility tractors, UTVs, and field-service trucks because they let operators move lights between machines. A quality magnetic base uses:

• Neodymium N42 or stronger magnet — 50-80kg pull force for a 75mm diameter base
• Rubber protective pad — prevents scratching the host surface and adds friction
• Articulated arm or swivel — for beam aiming without unclamping

Magnetic mounts have real limitations on tractors:

• Not for permanent installation — vibration walks the magnet over time
• Will not stick to fiberglass fenders or plastic cabs — only ferrous surfaces
• Reduced hold on rounded surfaces — fender curves reduce contact area
• Magnet strength drops with heat — a magnet rated 80kg at 20°C may hold 50kg at 60°C

Use magnetic mounts for temporary field lighting (hooking a light to a toolbox or fender for a night repair). For permanent tractor installation, use a ROPS bracket or fender bolt-on mount.

Fender Mount: The Rear Work Light Standard

The rear fender is the standard mounting point for the rear-facing tractor work light — the light that illuminates the implement during night operations. Fender mounts use:

• Through-bolted bracket — bolts through the fender with backing plate on the inside
• Stainless hardware — fertilizer and pesticide spray corrode zinc-plated steel within months
• Cable routing through fender — sealed grommet to prevent chafing and water ingress
• Adjustable angle — implement height varies, so beam aim must be adjustable

The critical consideration for fender mounting: IP69K sealing. Fender-mounted lights get direct exposure to pesticide spray, fertilizer dust, and pressure washing. A light rated IP68 only will leak within the first season of pressure washing. Aurora's fender-mount work lights are IP68 + IP69K sealed, with 480+ hour salt spray resistance on the housing — surviving the chemical environment of modern agriculture.

Boom And Implement Mounts: 3-Point Hitch Lighting

For implements that need their own lighting (large planters, balers, sprayer booms, tillage equipment), the mount attaches to the implement frame via U-bolt or welded tab. Implement-mounted lights see the most aggressive vibration on any tractor — direct contact with soil engagement.

Requirements for implement mounts:

• Heavy-duty rubber isolator — thicker than ROPS isolator, tuned for impact shocks
• Stainless steel throughout — soil engagement kicks up fertilizer, salt, moisture
• Cable protection — spiral wrap or braided sleeve, with strain relief at the light
• Quick-disconnect connector — Deutsch DT or AMP Superseal for implement swap

Aurora's implement-mount work lights use 10-60V wide-voltage drivers (handles voltage drop on long implement cable runs), IP69K sealing (pressure-washable after every use), and 3-axis vibration validation per ISO 16750-3. The 50,000+ hour lifespan is real because the mount is engineered as part of the system.

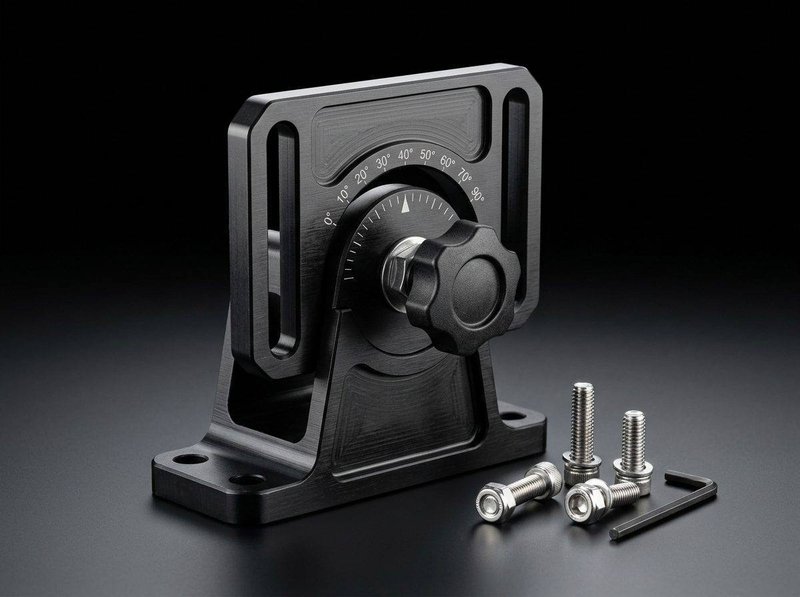

Mounting Hardware: What Aurora Ships Standard

Every Aurora tractor work light ships with:

• 304 stainless steel bracket — sized to the light (ROPS, fender, or boom variant)
• Rubber vibration isolator — tuned to 9-150Hz agricultural vibration band
• Stainless U-bolt kit — for ROPS or tube mounting, 50-75mm diameter range
• Stainless bolt kit — for fender or flat-surface mounting
• Deutsch DT connector — IP68-sealed, automotive-grade
• 1.5m PVC/PUR cable — PUR for cold flexibility (-40°C), PVC for standard
• Installation guide — torque specs, beam aiming, cable routing

This is what a real led work light manufacturer ships — not a light in a polybag with no hardware. Aurora's mounts are validated as part of the system; the 50,000-hour lifespan rating applies to the light + mount + cable assembly, not just the LED.

Tractor-Specific Considerations

Voltage: 9-36V Or 10-60V Wide Voltage

Modern tractors mix 12V (compact utility) and 24V (large row-crop and 4WD). Some new tractors run 12V architecture with 48V mild-hybrid assist. Aurora's 10-60V wide-voltage work lights cover every architecture and the full cold-crank/load-dump swing. One SKU fits the entire fleet — major procurement simplification for dealers and large farms.

Chemical Resistance

Agricultural chemicals (glyphosate, atrazine, urea, DAP/MOP fertilizer) corrode standard aluminum housings. Aurora's housings pass 480+ hour salt spray (ASTM B117) and resist common agricultural chemicals when cleaned per the schedule (pressure wash after every chemical exposure, IP69K-rated).

Cold Flexibility

Tractors operate to -40°C in northern winter operations (feeding, snow removal). Aurora's PUR cable options stay flexible to -40°C, where standard PVC cable shatters. The light itself is rated -40~+85°C operating, validated in a thermal cycle chamber.

Aurora Credentials

Aurora (Shenzhen Aurora Technology Limited) is a 35,000㎡ IATF 16949-certified factory with 400+ employees including 40 R&D engineers, 6 automated SMT lines, and 1,000,000+ pieces monthly capacity. The company supplies Walmart, Bosch and Ford supply chains and holds patents in thermal management and beam control. OEM/ODM with brand licensing available. MOQ 100 pcs standard, 500+ pcs for custom tooling. Lead time 20-25 days standard, 30-40 days for bulk.

FAQ

What is the best mounting option for a tractor work light?

For permanent installation, a ROPS bracket (U-bolt to the roll-over bar) is the strongest and most accessible option. For rear implement lighting, a fender bolt-on mount. For implement lighting, a heavy-duty boom mount with rubber isolator. Aurora ships stainless steel brackets with rubber vibration isolators validated for 3-axis vibration per ISO 16750-3.

Can I use a magnetic mount for a permanent tractor work light?

No. Magnetic mounts walk under continuous vibration within days. Use magnetic mounts only for temporary field service lighting. For permanent installation, use a ROPS bracket (U-bolt to the roll-over bar) or fender bolt-on mount with stainless hardware.

What hardware should a tractor work light mount include?

A proper tractor work light mount includes 304 stainless steel bracket, rubber vibration isolator, stainless U-bolt kit (50-75mm for ROPS), stainless bolt kit (for fender), Deutsch DT IP68 connector, and PUR cable for cold flexibility. Aurora ships all of this standard with every tractor work light.

Do I need IP69K for a tractor work light?

Yes. Tractor work lights get direct exposure to pesticide spray, fertilizer dust, and weekly pressure washing. IP68 (immersion) alone leaks under pressure washing. Aurora seals every tractor work light to both IP68 and IP69K, validated in-house on every production batch.

Author & Source

This guide was researched and written by Engineer Xie, LED Optical Engineer at Shenzhen Aurora Technology Limited. All mount engineering recommendations and vibration benchmarks are drawn from Aurora's IATF 16949 production system and current OEM project records.
