Internal Test Report · Photometric Test

200W-6 -inch

Product Type ：Photometric Test Test Procedure:Light distribution / Illuminance / Luminous intensity Release:Sanitized public version

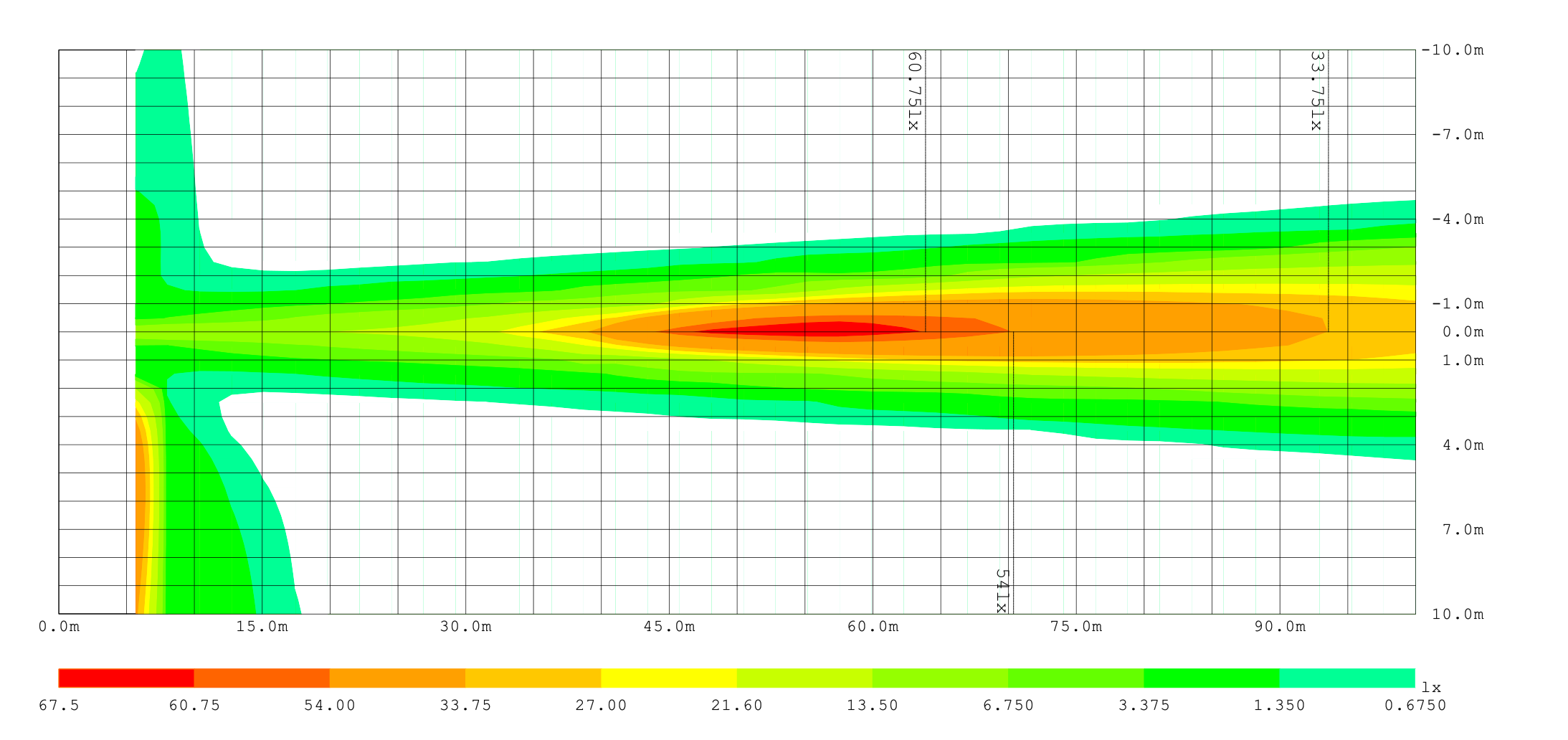

Road Illuminance Map 1Page 1 of 4
Road Illuminance Map 1
Road illuminance map 1

60.75lx 33.75lx -10.0m

-7.0m

-4.0m

-1.0m

0.0m

1.0m

4.0m

7.0m

54lx

0.0m 15.0m 30.0m 45.0m 60.0m 75.0m 90.0m 10.0m

67.5 60.75 54.00 33.75 27.00 21.60 13.50 6.750 3.375 1.350 0.6750

Mounting height: H = 1.000 m; road illumination area: L = 100.0 m, W = 20.0 m

Electrical: 13.207 V · 4.96 A · 65.55 W · PF 1.000

Vertical angle: –10.0° to 10.0° (0.1° step) · Horizontal angle: –15.0° to 15.0° (0.1° step)

Test system: EVERFINE GO-HD · Product type:

Product No.: · Model:

Tested by: AURORA

Tested by: Test Engineer · Test date: 2026-08-21

Ambient temperature: 25°C · Humidity: 65%

Product: 200W-6-inch · Spec:

ID3: ID4:

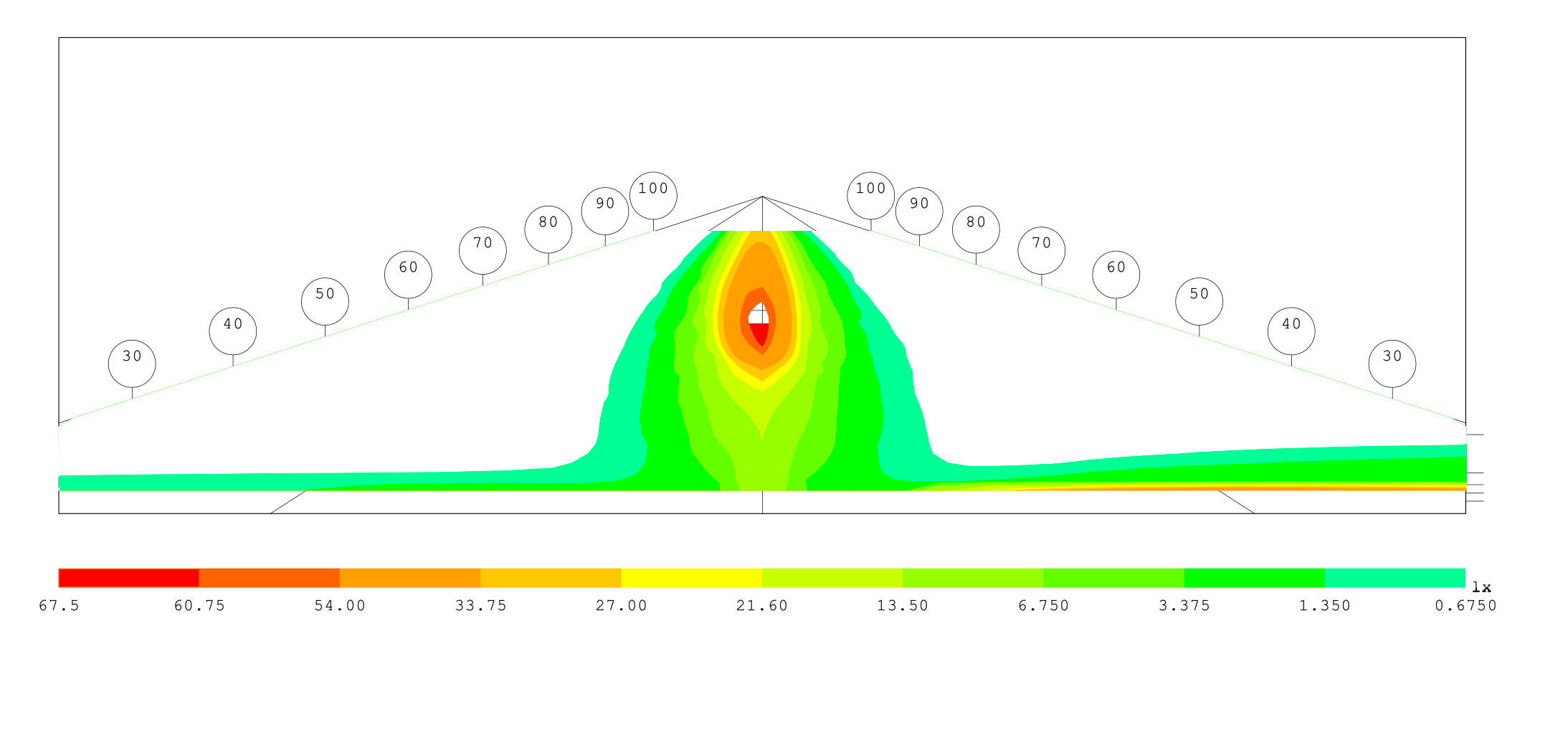

Road Illuminance Map 2Page 2 of 4
Road Illuminance Map 2
Road illuminance map 2

100 100

90 90

80 80

70 70

60 60

50 50

40 40

30 30

67.5 60.75 54.00 33.75 27.00 21.60 13.50 6.750 3.375 1.350 0.6750

Mounting height: H = 1.000 m; road illumination area: L = 100.0 m, W = 20.0 m

Electrical: 13.207 V · 4.96 A · 65.55 W · PF 1.000

Vertical angle: –10.0° to 10.0° (0.1° step) · Horizontal angle: –15.0° to 15.0° (0.1° step)

Test system: EVERFINE GO-HD · Product type:

Product No.: · Model:

Tested by: AURORA

Tested by: Test Engineer · Test date: 2026-08-21

Ambient temperature: 25°C · Humidity: 65%

Product: 200W-6-inch · Spec:

ID3: ID4:

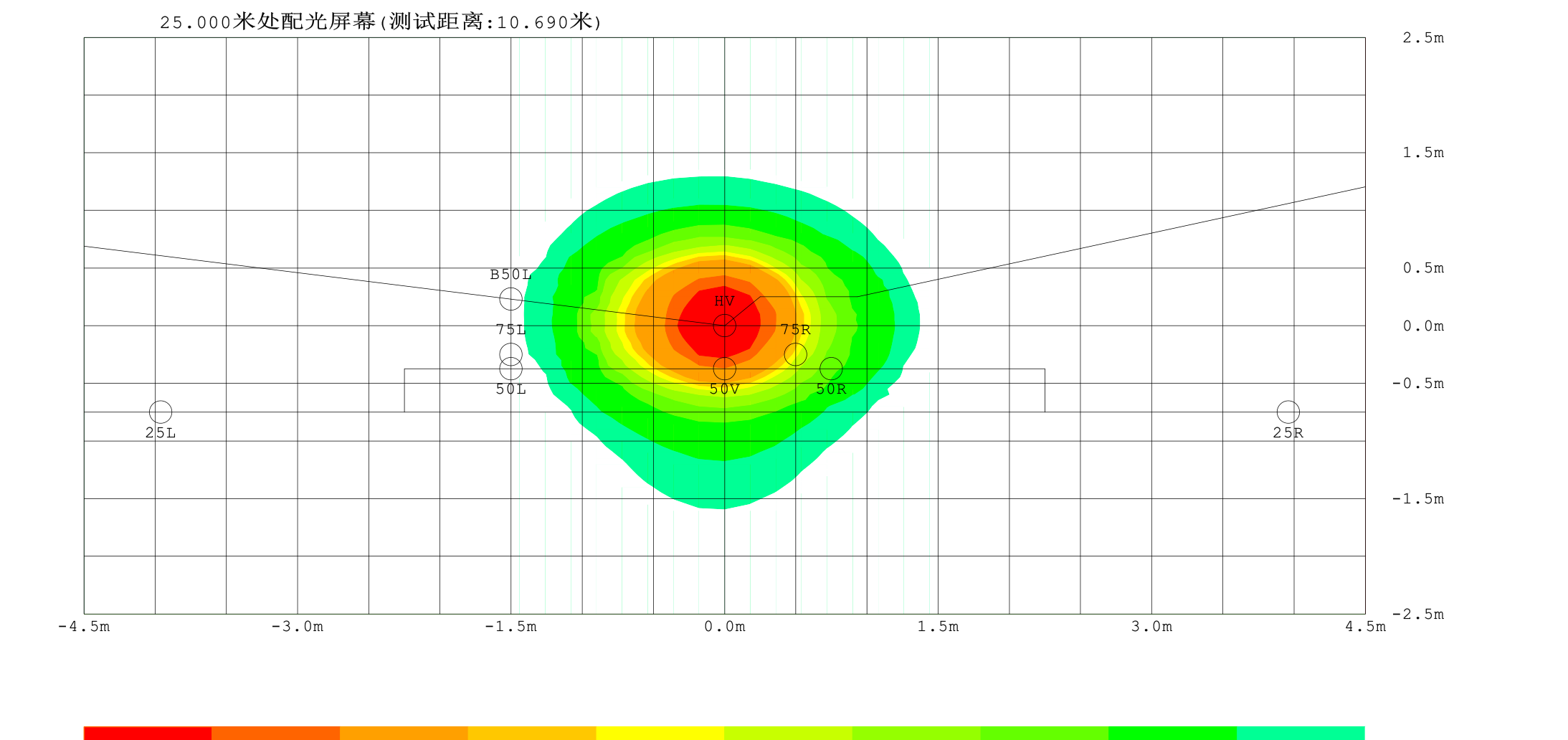

Illuminance contour curvesPage 3 of 4
Illuminance contour curves
Illuminance contour curves

Photometric screen at 25.000 m (test distance: 10.690 m)

2.5m

1.5m

B50L 0.5m

HV

75L 75R 0.0m

50L 50V 50R -0.5m

25L 25R

-1.5m

-4.5m -3.0m -1.5m 0.0m 1.5m 3.0m 4.5m -2.5m

512.6 461.4 410.1 256.3 205.0 164.0 102.5 51.26 25.63 10.25 5.126

Vertical angle: –10.0° to 10.0° (0.1° step) · Horizontal angle: –15.0° to 15.0° (0.1° step)

Test system: EVERFINE GO-HD · Product type:

Product No.: · Model:

Tested by: AURORA

Tested by: Test Engineer · Test date: 2026-08-21

Ambient temperature: 25°C · Humidity: 65%

Product: 200W-6-inch · Spec:

ID3: ID4:

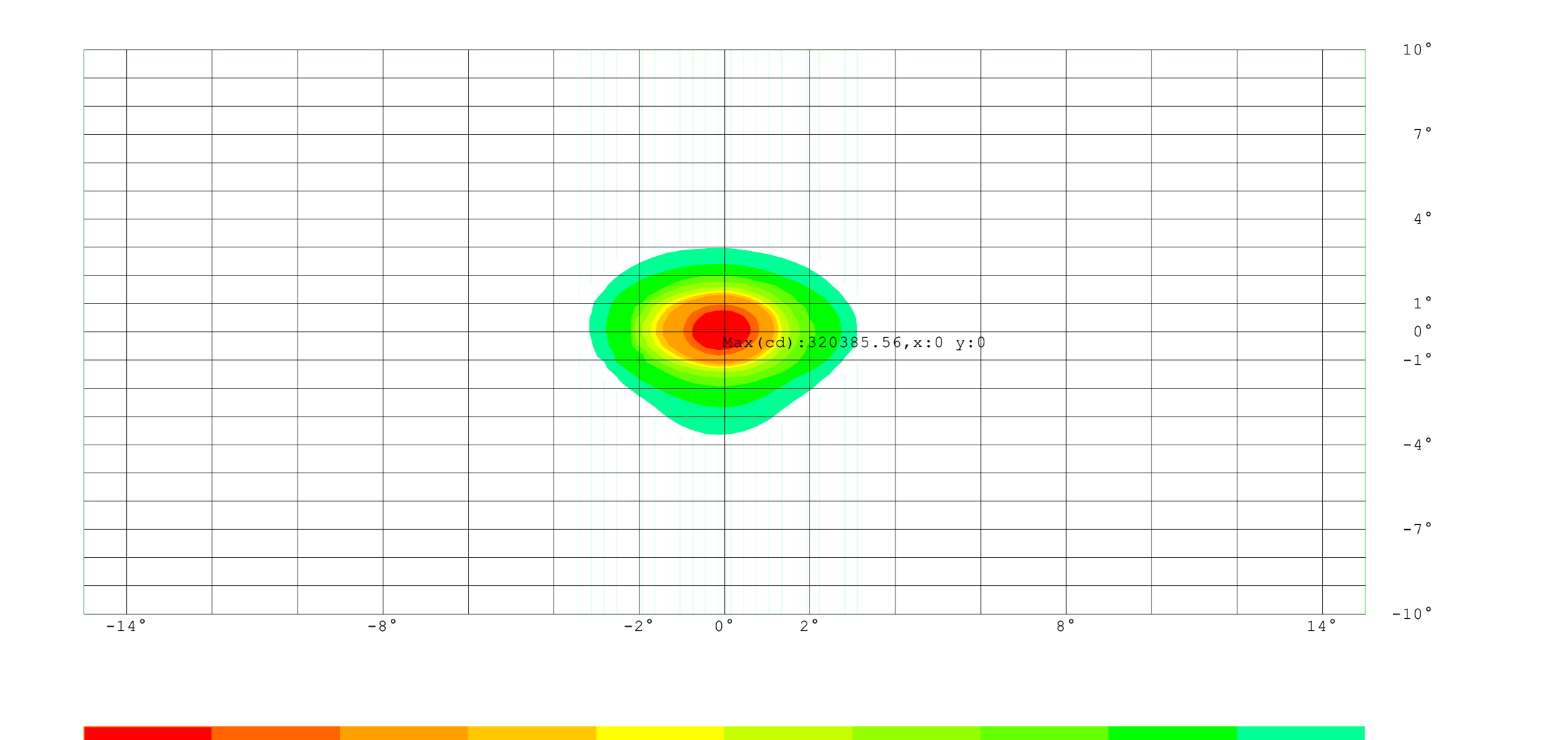

Luminous intensity contour curvesPage 4 of 4
Luminous intensity contour curves
Luminous intensity contour curves

10°

7°

4°

1°

Max(cd):320385.56,x:0 y:0 0°

-1°

-4°

-7°

-14° -8° -2° 0° 2° 8° 14° -10°

3.204e+005 287864 255879 159925 127940 102352 63970 31985 15992 6397 3198

Vertical angle: –10.0° to 10.0° (0.1° step) · Horizontal angle: –15.0° to 15.0° (0.1° step)

Test system: EVERFINE GO-HD · Product type:

Product No.: · Model:

Tested by: AURORA

Tested by: Test Engineer · Test date: 2026-08-21

Ambient temperature: 25°C · Humidity: 65%

Product: 200W-6-inch · Spec:

ID3: ID4:
