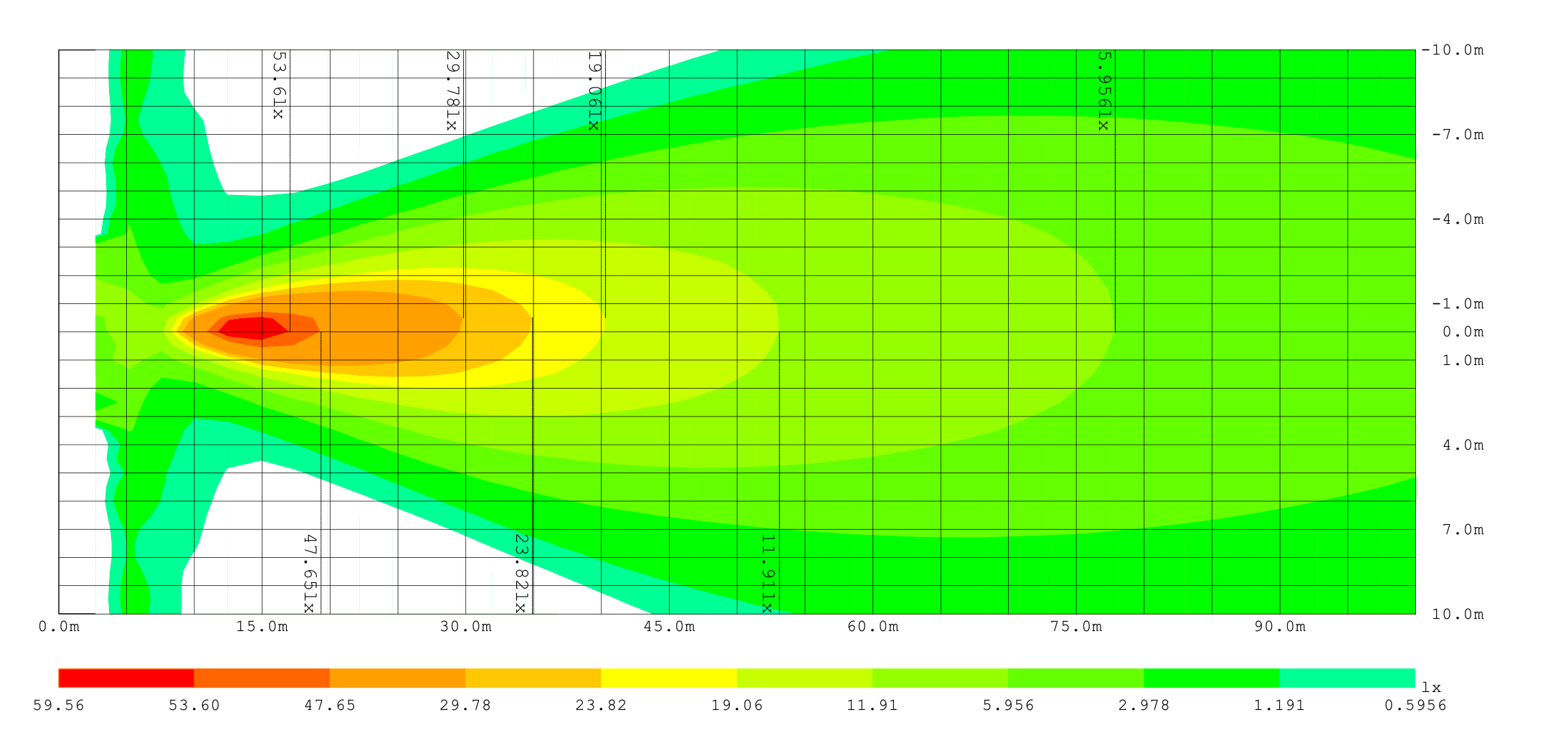

ALO-W-4-R12T3-AW Road Scan

53.6lx 29.78lx 19.06lx 5.956lx -10.0m

-7.0m

-4.0m

-1.0m

0.0m

1.0m

4.0m

47.65lx 23.82lx 11.91lx 7.0m

0.0m 15.0m 30.0m 45.0m 60.0m 75.0m 90.0m 10.0m

59.56 53.60 47.65 29.78 23.82 19.06 11.91 5.956 2.978 1.191 0.5956

Mounting height: H = 1.000 m; road illumination area: L = 100.0 m, W = 20.0 m

Electrical: 13.198 V · 2.16 A · 28.56 W · PF 1.000

Vertical angle: –20.0° to 55.0° (0.5° step) · Horizontal angle: –70.0° to 70.0° (1.0° step)

Test system: EVERFINE GO-HD · Product type:

Product No.: · Model:

Tested by: AURORA

Tested by: Test Engineer · Test date: 2024-11-11

Ambient temperature: 25°C · Humidity: 65%

Product: ALO-W-4-R12T3-AW · Spec:

ID3: ID4:

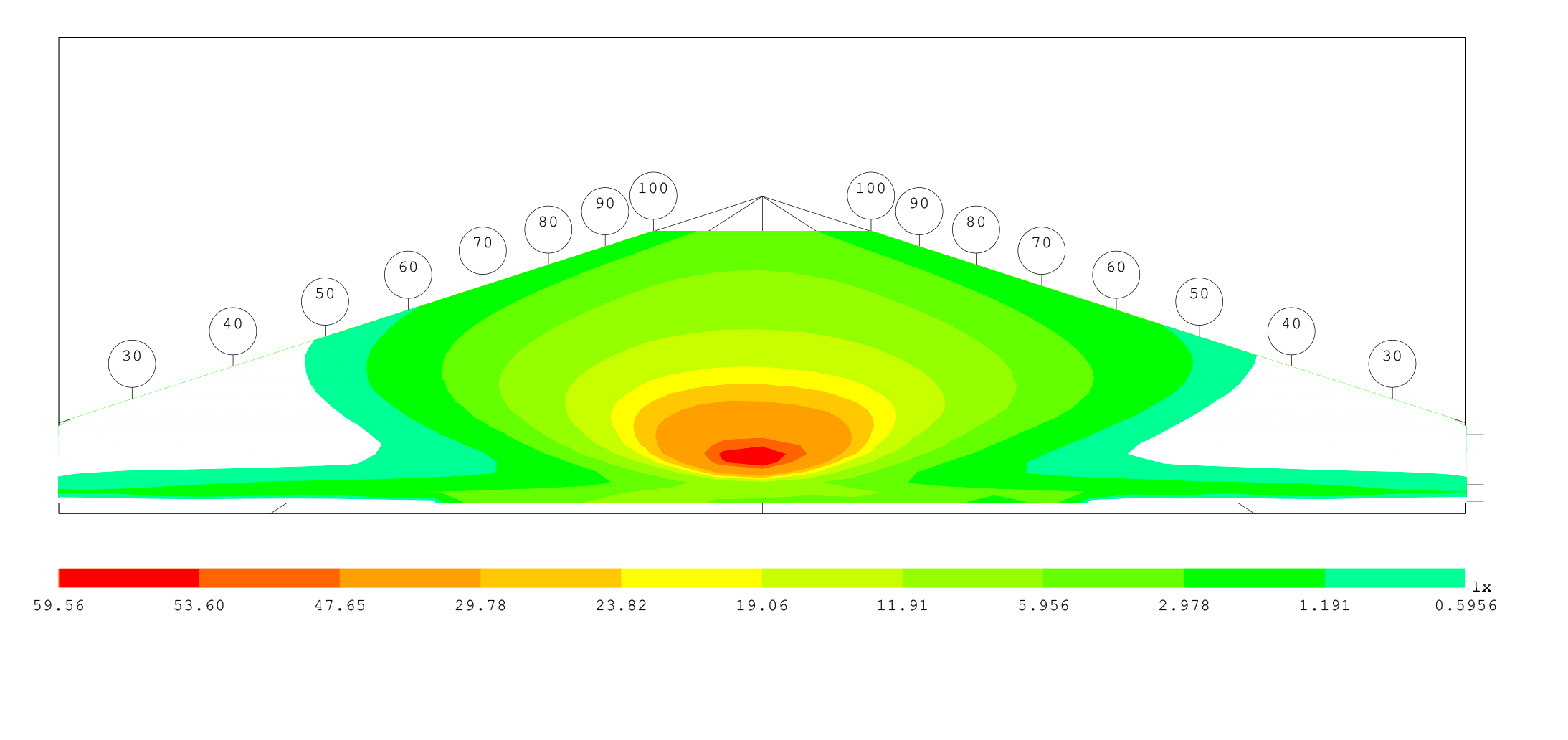

100 100

90 90

80 80

70 70

60 60

50 50

40 40

30 30

59.56 53.60 47.65 29.78 23.82 19.06 11.91 5.956 2.978 1.191 0.5956

Mounting height: H = 1.000 m; road illumination area: L = 100.0 m, W = 20.0 m

Electrical: 13.198 V · 2.16 A · 28.56 W · PF 1.000

Vertical angle: –20.0° to 55.0° (0.5° step) · Horizontal angle: –70.0° to 70.0° (1.0° step)

Test system: EVERFINE GO-HD · Product type:

Product No.: · Model:

Tested by: AURORA

Tested by: Test Engineer · Test date: 2024-11-11

Ambient temperature: 25°C · Humidity: 65%

Product: ALO-W-4-R12T3-AW · Spec:

ID3: ID4:

Photometric screen at 25.000 m (test distance: 10.000 m)

2.5m

1.5m

B50L 0.5m

HV

75L 75R 0.0m

50L 50V 50R -0.5m

25L 25R

-1.5m

-4.5m -3.0m -1.5m 0.0m 1.5m 3.0m 4.5m -2.5m

76.85 69.17 61.48 38.43 30.74 24.59 15.37 7.685 3.843 1.537 0.7685

Vertical angle: –20.0° to 55.0° (0.5° step) · Horizontal angle: –70.0° to 70.0° (1.0° step)

Test system: EVERFINE GO-HD · Product type:

Product No.: · Model:

Tested by: AURORA

Tested by: Test Engineer · Test date: 2024-11-11

Ambient temperature: 25°C · Humidity: 65%

Product: ALO-W-4-R12T3-AW · Spec:

ID3: ID4:

54°

42°

30°

18°

6°

Max(cd):48172.66,x:0 y:1 0°

-6°

-18°

-66° -42° -18° 0° 18° 42° 66°

4.817e+004 43023 38243 23902 19121 15297 9561 4780 2390 956.1 478.0
