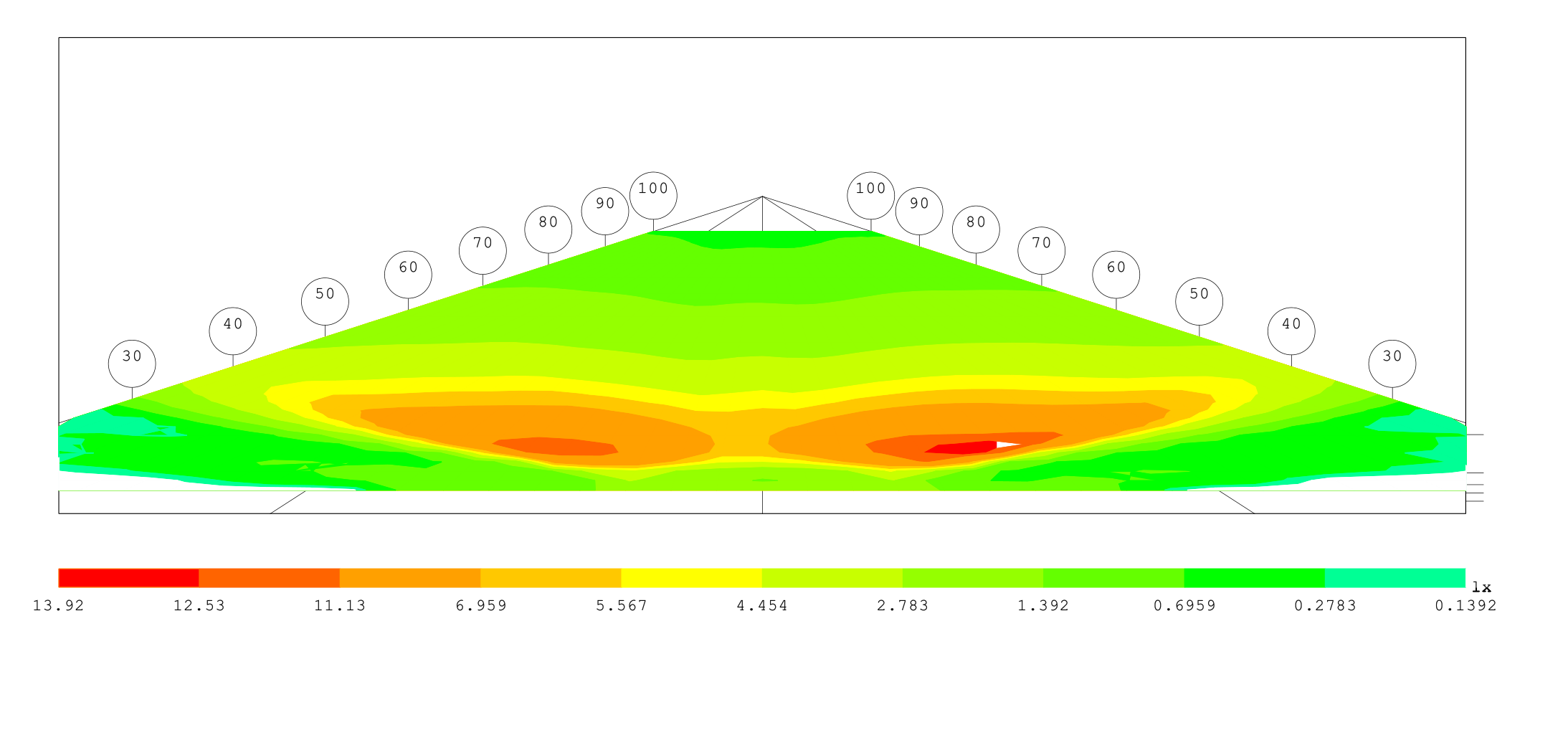

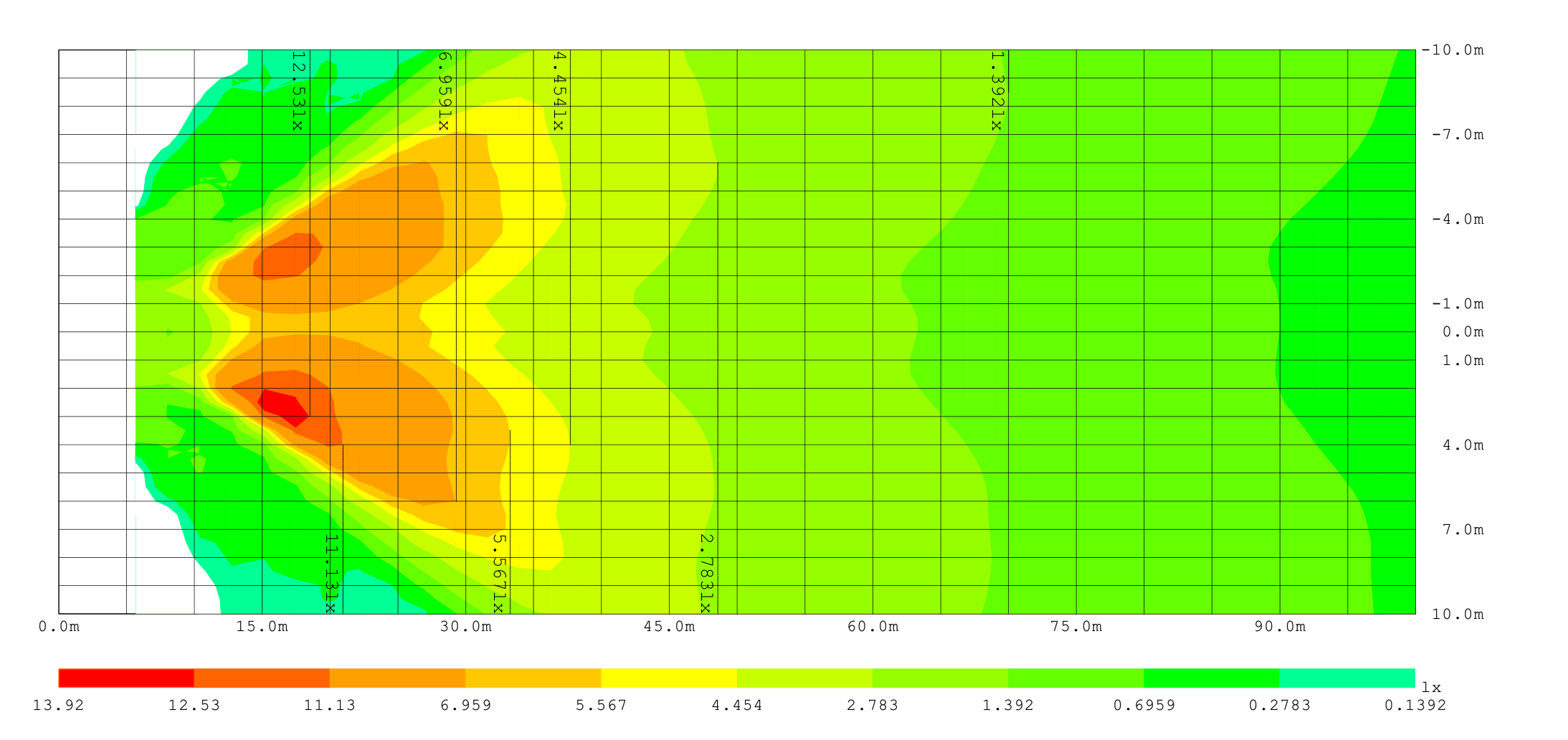

motorcycle light Low Beam Full-Screen Scan

12.53lx 6.959lx 4.454lx 1.392lx -10.0m

-7.0m

-4.0m

-1.0m

0.0m

1.0m

4.0m

11.13lx 5.567lx 2.783lx 7.0m

0.0m 15.0m 30.0m 45.0m 60.0m 75.0m 90.0m 10.0m

13.92 12.53 11.13 6.959 5.567 4.454 2.783 1.392 0.6959 0.2783 0.1392

Mounting height: H = 1.000 m; road illumination area: L = 100.0 m, W = 20.0 m

Electrical: 13.199 V · 1.60 A · 21.08 W · PF 1.000

Vertical angle: –10.0° to 10.0° (0.2° step) · Horizontal angle: –35.0° to 35.0° (0.5° step)

Test system: EVERFINE GO-HD · Product type:

Product No.: · Model:

Tested by: AURORA

Tested by: Test Engineer · Test date: 2025-02-20

Ambient temperature: 25°C · Humidity: 65%

Product: motorcycle light · Spec:

ID3: ID4:

100 100

90 90

80 80

70 70

60 60

50 50

40 40

30 30

13.92 12.53 11.13 6.959 5.567 4.454 2.783 1.392 0.6959 0.2783 0.1392

Mounting height: H = 1.000 m; road illumination area: L = 100.0 m, W = 20.0 m

Electrical: 13.199 V · 1.60 A · 21.08 W · PF 1.000

Vertical angle: –10.0° to 10.0° (0.2° step) · Horizontal angle: –35.0° to 35.0° (0.5° step)

Test system: EVERFINE GO-HD · Product type:

Product No.: · Model:

Tested by: AURORA

Tested by: Test Engineer · Test date: 2025-02-20

Ambient temperature: 25°C · Humidity: 65%

Product: motorcycle light · Spec:

ID3: ID4:

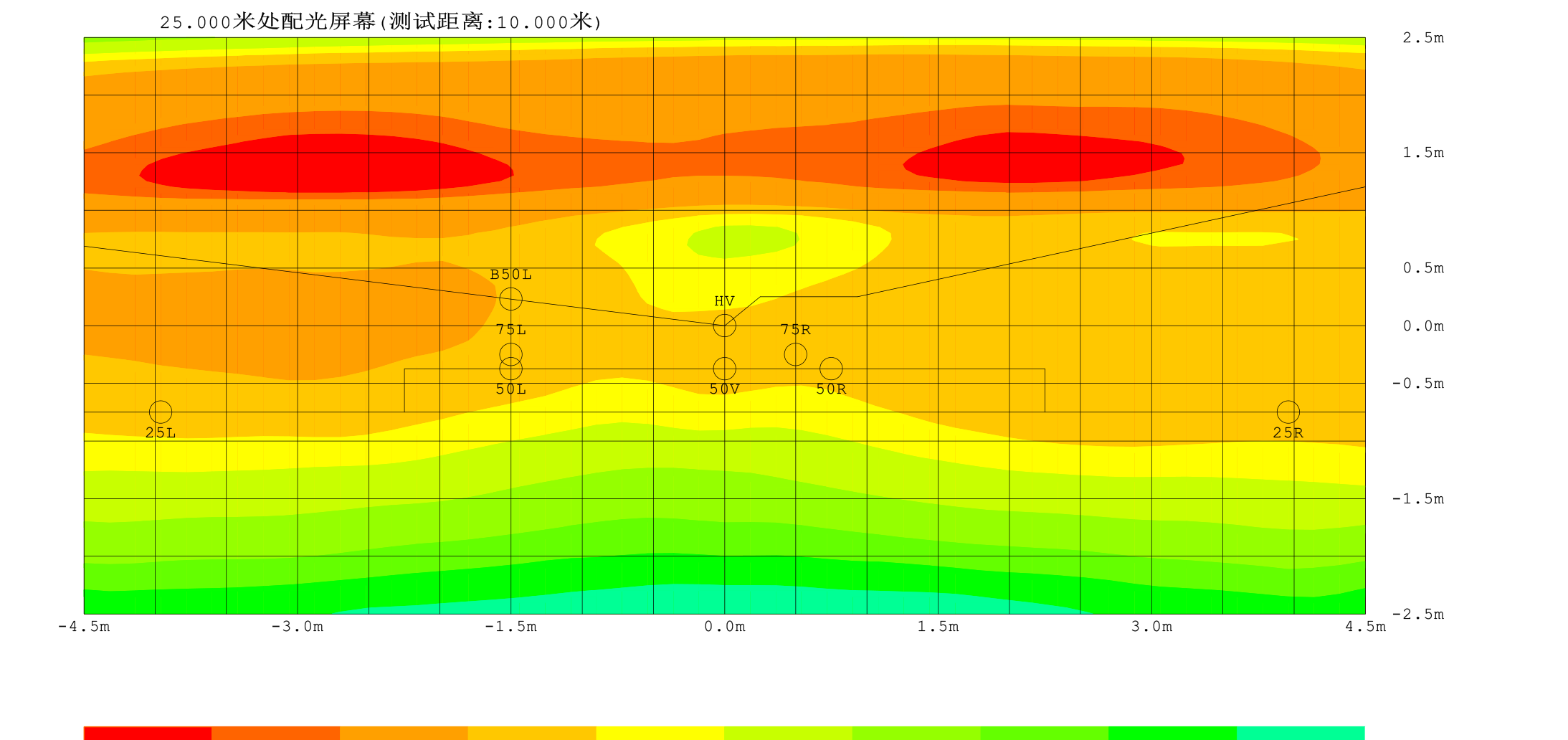

Photometric screen at 25.000 m (test distance: 10.000 m)

2.5m

1.5m

B50L 0.5m

HV

75L 75R 0.0m

50L 50V 50R -0.5m

25L 25R

-1.5m

-4.5m -3.0m -1.5m 0.0m 1.5m 3.0m 4.5m -2.5m

21.09 18.98 16.87 10.54 8.435 6.748 4.218 2.109 1.054 0.4218 0.2109

Vertical angle: –10.0° to 10.0° (0.2° step) · Horizontal angle: –35.0° to 35.0° (0.5° step)

Test system: EVERFINE GO-HD · Product type:

Product No.: · Model:

Tested by: AURORA

Tested by: Test Engineer · Test date: 2025-02-20

Ambient temperature: 25°C · Humidity: 65%

Product: motorcycle light · Spec:

ID3: ID4:

10°

7°

4°

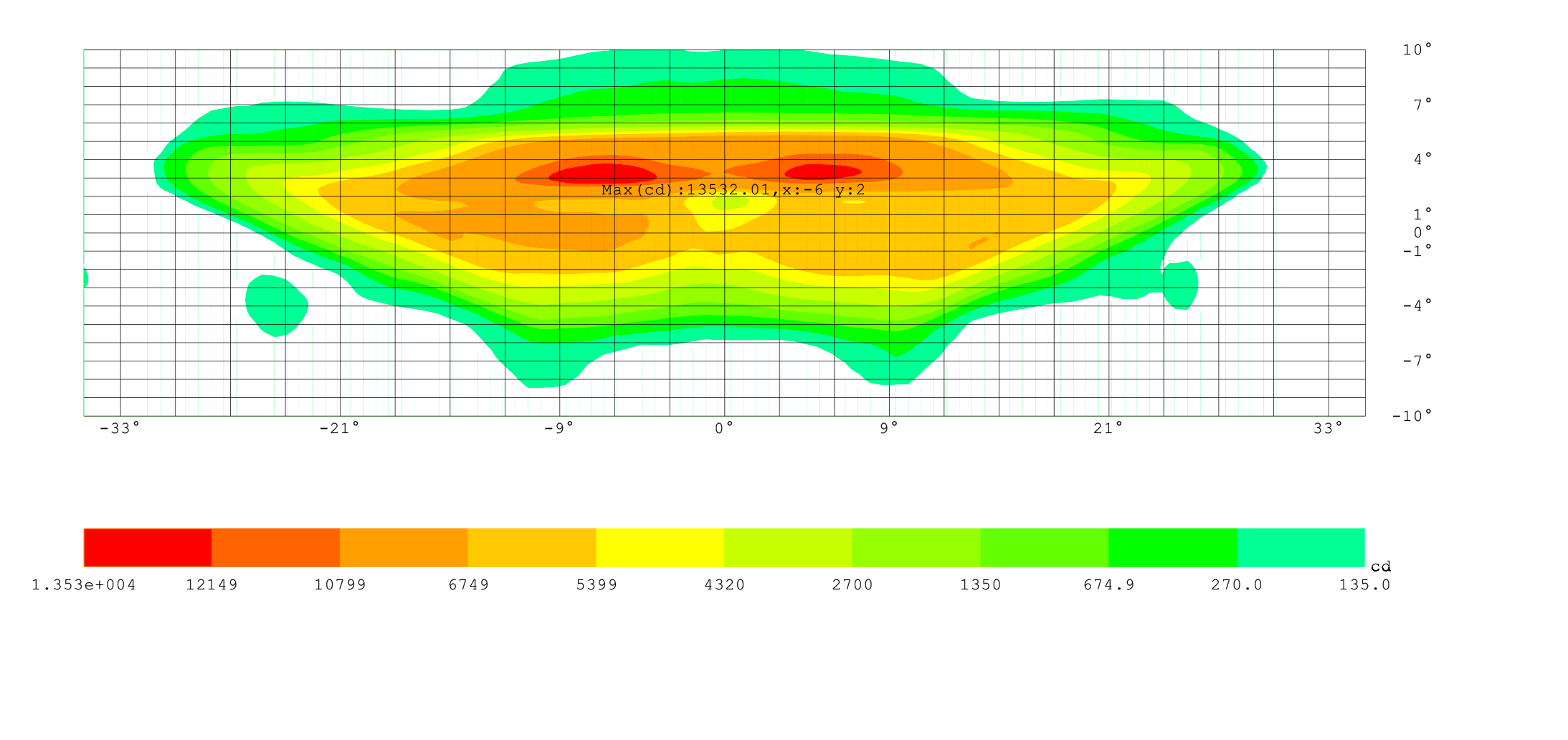

Max(cd):13532.01,x:-6 y:2

1°

0°

-1°

-4°

-7°

-33° -21° -9° 0° 9° 21° 33° -10°

1.353e+004 12149 10799 6749 5399 4320 2700 1350 674.9 270.0 135.0
