YF-26002 Full Beam Full-Screen Scan

441.2lx 245.1lx 156.9lx 49.02lx 9.804lx -10.0m

-7.0m

-4.0m

-1.0m

0.0m

1.0m

4.0m

392.2lx 196.1lx 98.04lx 24.51lx 7.0m

0.0m 15.0m 30.0m 45.0m 60.0m 75.0m 90.0m 10.0m

490.2 441.2 392.2 245.1 196.1 156.9 98.04 49.02 24.51 9.804 4.902

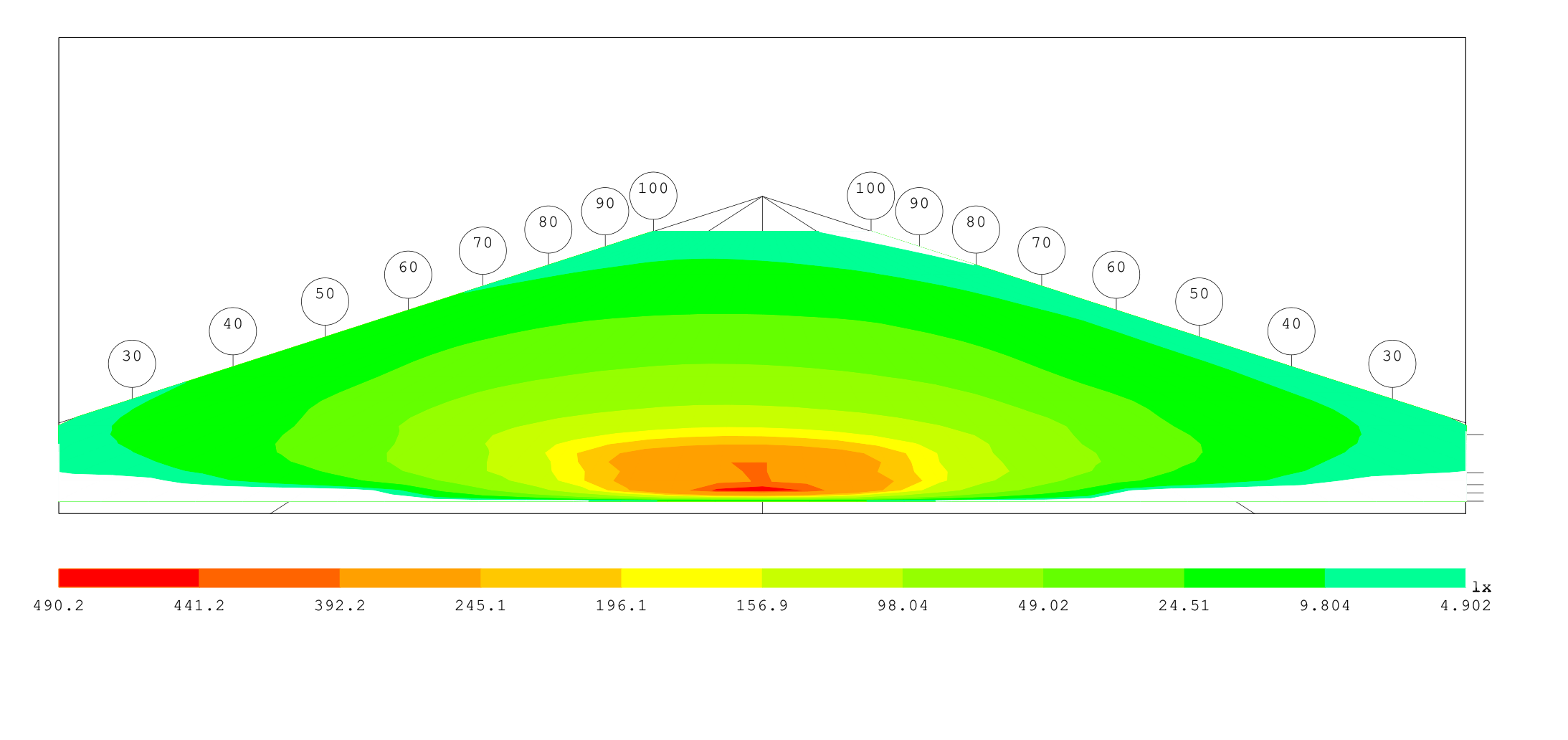

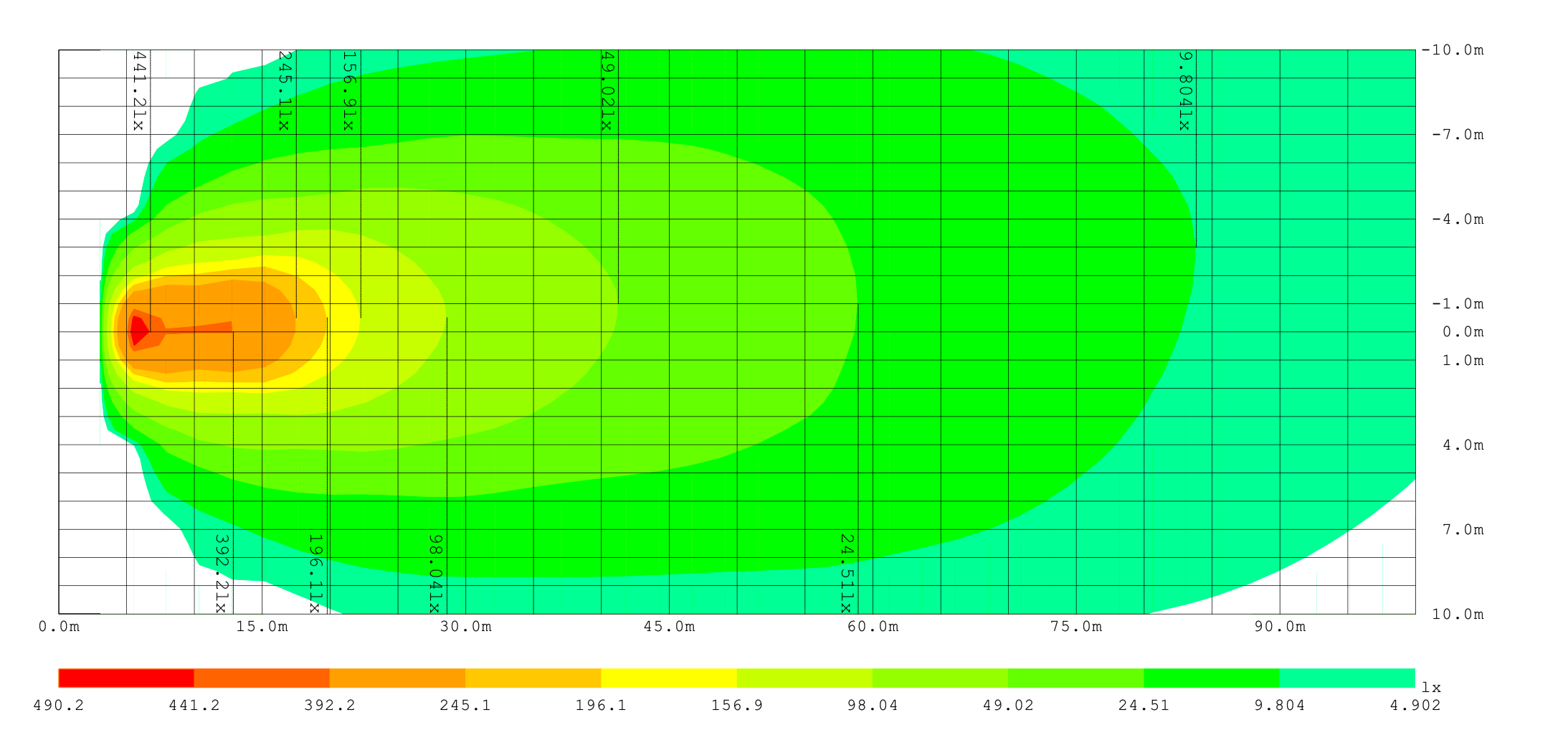

Mounting height: H = 1.000 m; road illumination area: L = 100.0 m, W = 20.0 m

Electrical: 13.199 V · 7.01 A · 92.56 W · PF 1.000

Vertical angle: –18.0° to 5.0° (0.5° step) · Horizontal angle: –55.0° to 55.0° (1.0° step)

Test system: EVERFINE GO-HD · Product type:

Product No.: · Model:

Tested by: AURORA

Tested by: Test Engineer · Test date: 2026-01-08

Ambient temperature: 25°C · Humidity: 65%

Product: YF-26002 · Spec:

ID3: ID4:

100 100

90 90

80 80

70 70

60 60

50 50

40 40

30 30

490.2 441.2 392.2 245.1 196.1 156.9 98.04 49.02 24.51 9.804 4.902

Mounting height: H = 1.000 m; road illumination area: L = 100.0 m, W = 20.0 m

Electrical: 13.199 V · 7.01 A · 92.56 W · PF 1.000

Vertical angle: –18.0° to 5.0° (0.5° step) · Horizontal angle: –55.0° to 55.0° (1.0° step)

Test system: EVERFINE GO-HD · Product type:

Product No.: · Model:

Tested by: AURORA

Tested by: Test Engineer · Test date: 2026-01-08

Ambient temperature: 25°C · Humidity: 65%

Product: YF-26002 · Spec:

ID3: ID4:

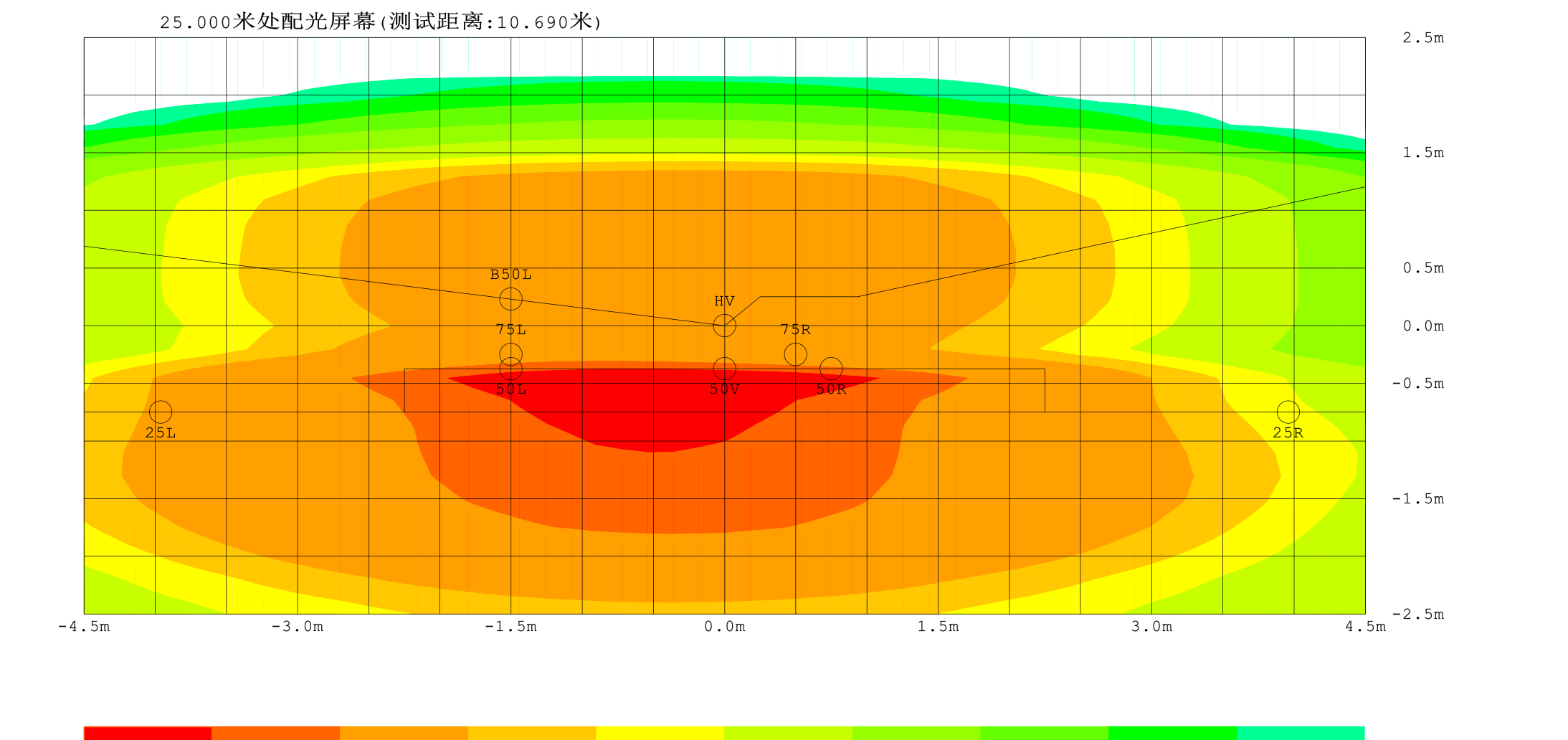

Photometric screen at 25.000 m (test distance: 10.690 m)

2.5m

1.5m

B50L 0.5m

HV

75L 75R 0.0m

50L 50V 50R -0.5m

25L 25R

-1.5m

-4.5m -3.0m -1.5m 0.0m 1.5m 3.0m 4.5m -2.5m

138.1 124.3 110.5 69.04 55.23 44.18 27.61 13.81 6.904 2.761 1.381

Vertical angle: –18.0° to 5.0° (0.5° step) · Horizontal angle: –55.0° to 55.0° (1.0° step)

Test system: EVERFINE GO-HD · Product type:

Product No.: · Model:

Tested by: AURORA

Tested by: Test Engineer · Test date: 2026-01-08

Ambient temperature: 25°C · Humidity: 65%

Product: YF-26002 · Spec:

ID3: ID4:

2°

0°

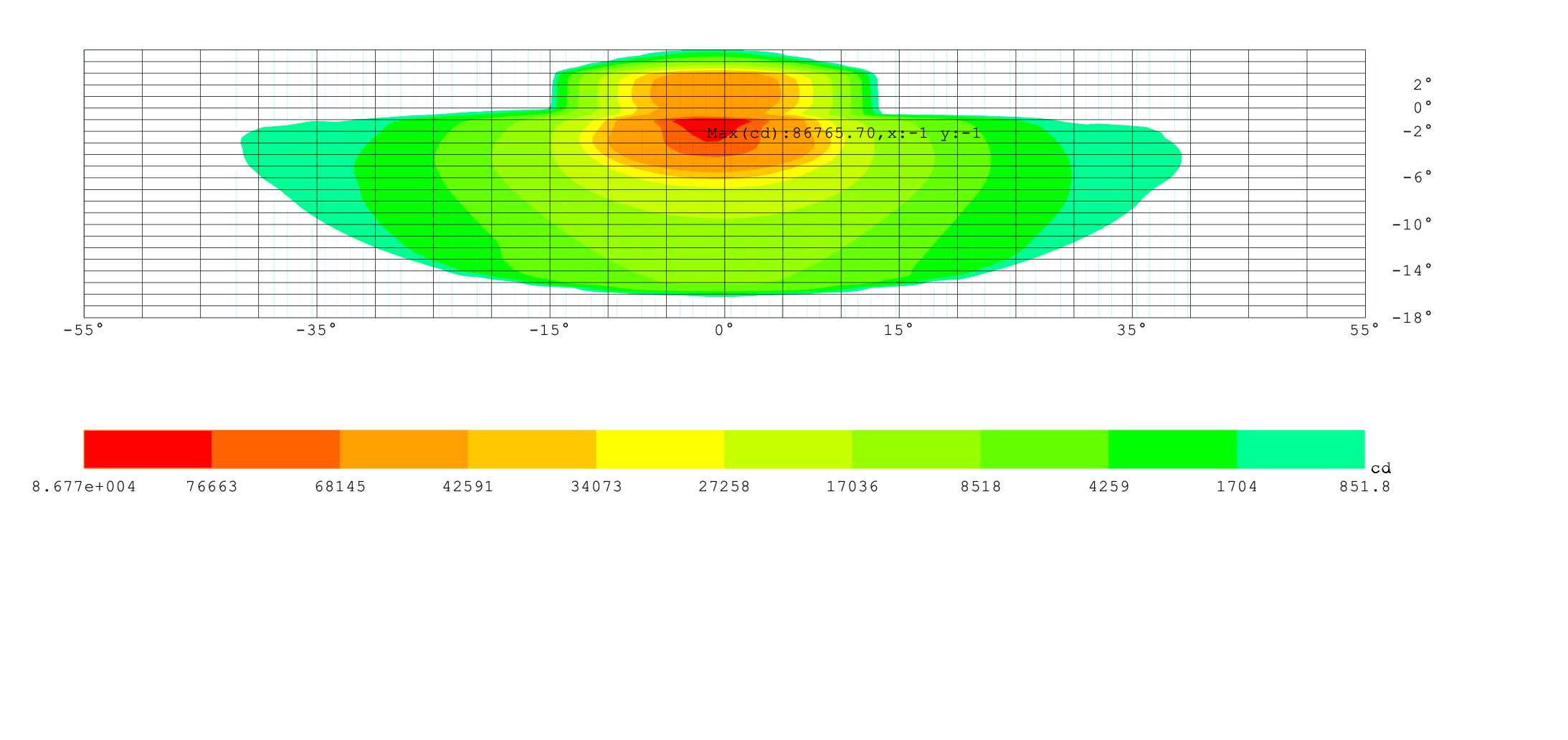

Max(cd):86765.70,x:-1 y:-1 -2°

-6°

-10°

-14°

-55° -35° -15° 0° 15° 35° 55° -18°

8.677e+004 76663 68145 42591 34073 27258 17036 8518 4259 1704 851.8

Vertical angle: –18.0° to 5.0° (0.5° step) · Horizontal angle: –55.0° to 55.0° (1.0° step)

Test system: EVERFINE GO-HD · Product type:

Product No.: · Model:

Tested by: AURORA

Tested by: Test Engineer · Test date: 2026-01-08

Ambient temperature: 25°C · Humidity: 65%

Product: YF-26002 · Spec:

ID3: ID4:
