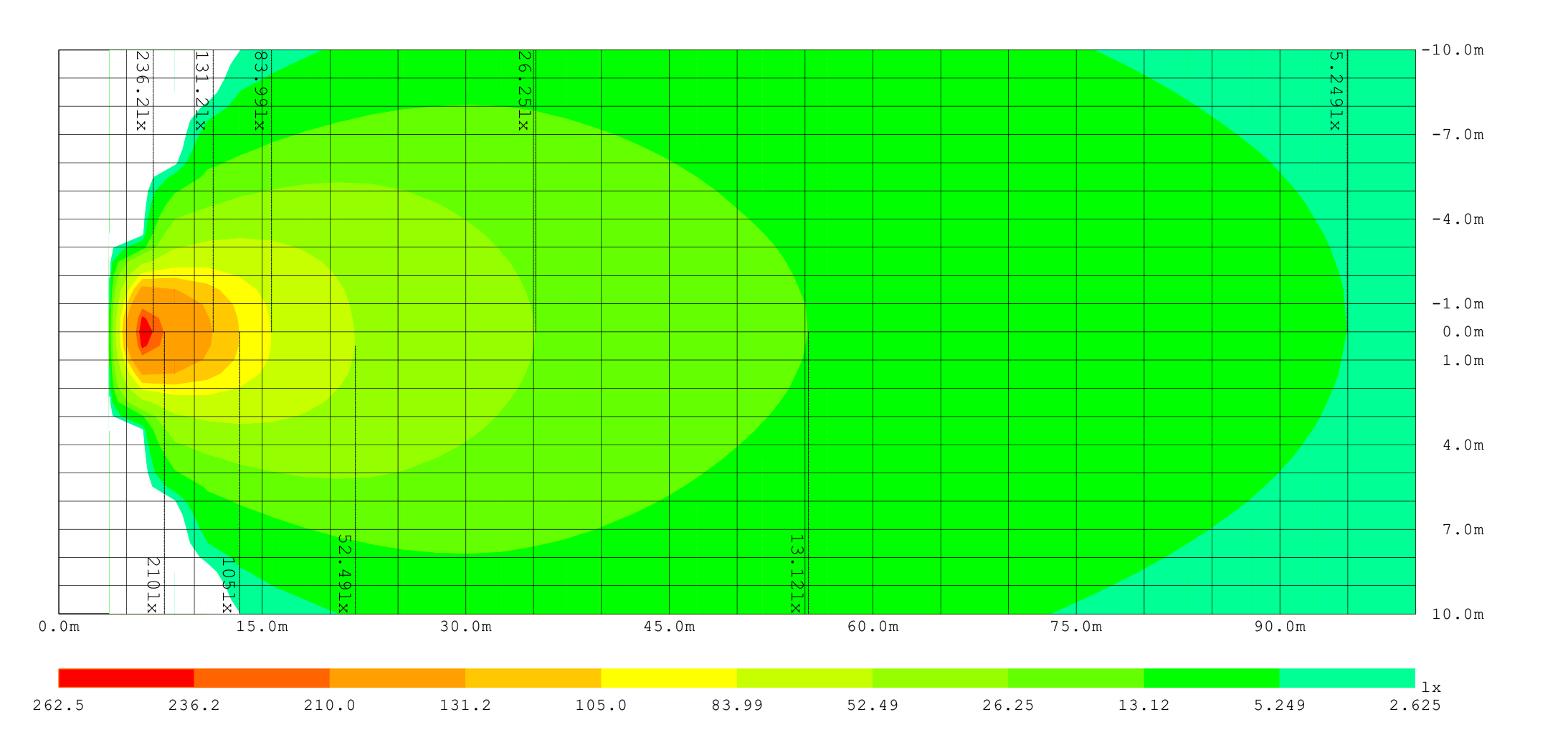

YF-26002 Low Beam Full-Screen Scan

236.2lx 131.2lx 83.99lx 26.25lx 5.249lx -10.0m

-7.0m

-4.0m

-1.0m

0.0m

1.0m

4.0m

52.49lx 13.12lx 7.0m

210lx 105lx

0.0m 15.0m 30.0m 45.0m 60.0m 75.0m 90.0m 10.0m

262.5 236.2 210.0 131.2 105.0 83.99 52.49 26.25 13.12 5.249 2.625

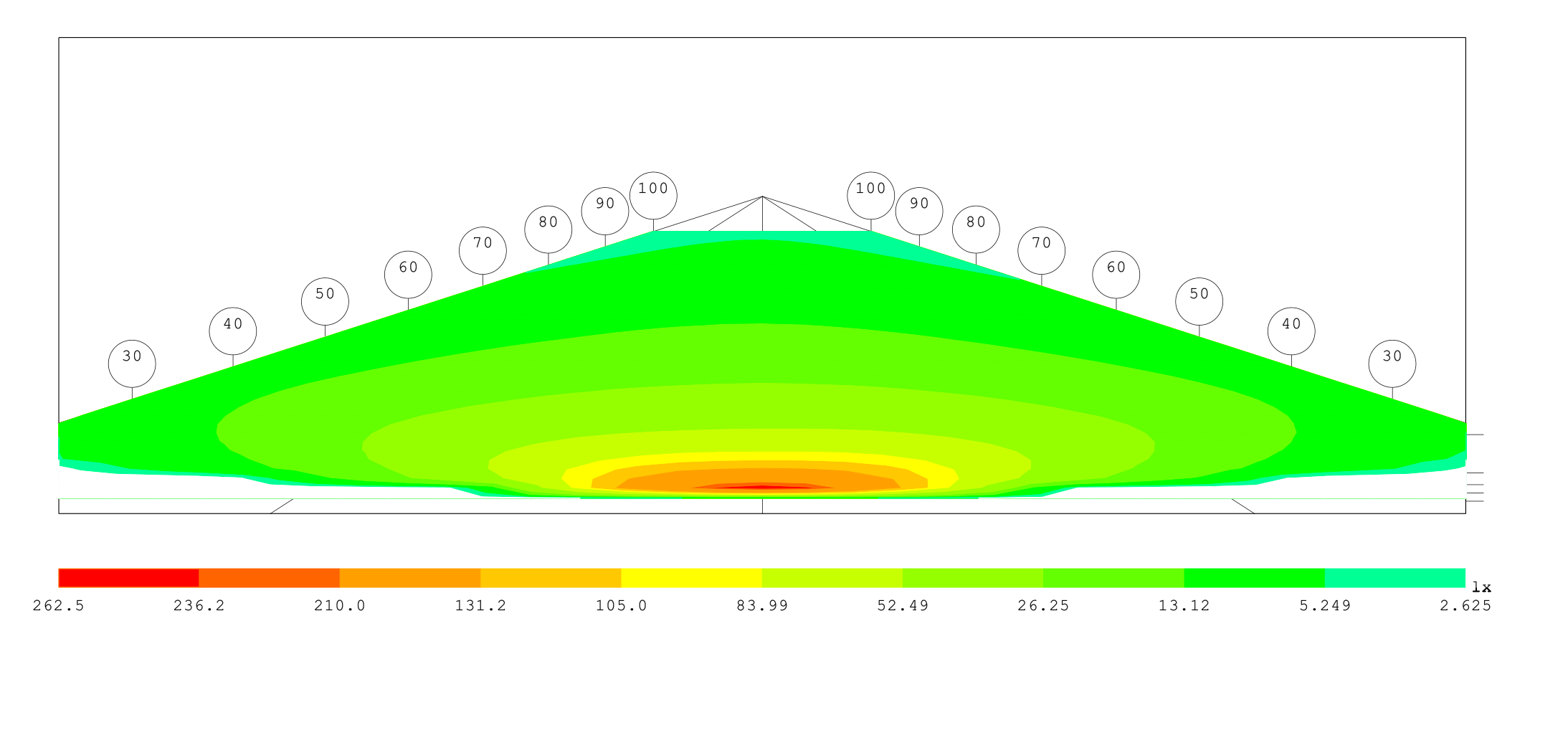

Mounting height: H = 1.000 m; road illumination area: L = 100.0 m, W = 20.0 m

Electrical: 13.199 V · 4.75 A · 62.64 W · PF 1.000

Vertical angle: –15.0° to 5.0° (0.5° step) · Horizontal angle: –55.0° to 55.0° (1.0° step)

Test system: EVERFINE GO-HD · Product type:

Product No.: · Model:

Tested by: AURORA

Tested by: Test Engineer · Test date: 2026-01-08

Ambient temperature: 25°C · Humidity: 65%

Product: YF-26002 · Spec:

ID3: ID4:

100 100

90 90

80 80

70 70

60 60

50 50

40 40

30 30

262.5 236.2 210.0 131.2 105.0 83.99 52.49 26.25 13.12 5.249 2.625

Mounting height: H = 1.000 m; road illumination area: L = 100.0 m, W = 20.0 m

Electrical: 13.199 V · 4.75 A · 62.64 W · PF 1.000

Vertical angle: –15.0° to 5.0° (0.5° step) · Horizontal angle: –55.0° to 55.0° (1.0° step)

Test system: EVERFINE GO-HD · Product type:

Product No.: · Model:

Tested by: AURORA

Tested by: Test Engineer · Test date: 2026-01-08

Ambient temperature: 25°C · Humidity: 65%

Product: YF-26002 · Spec:

ID3: ID4:

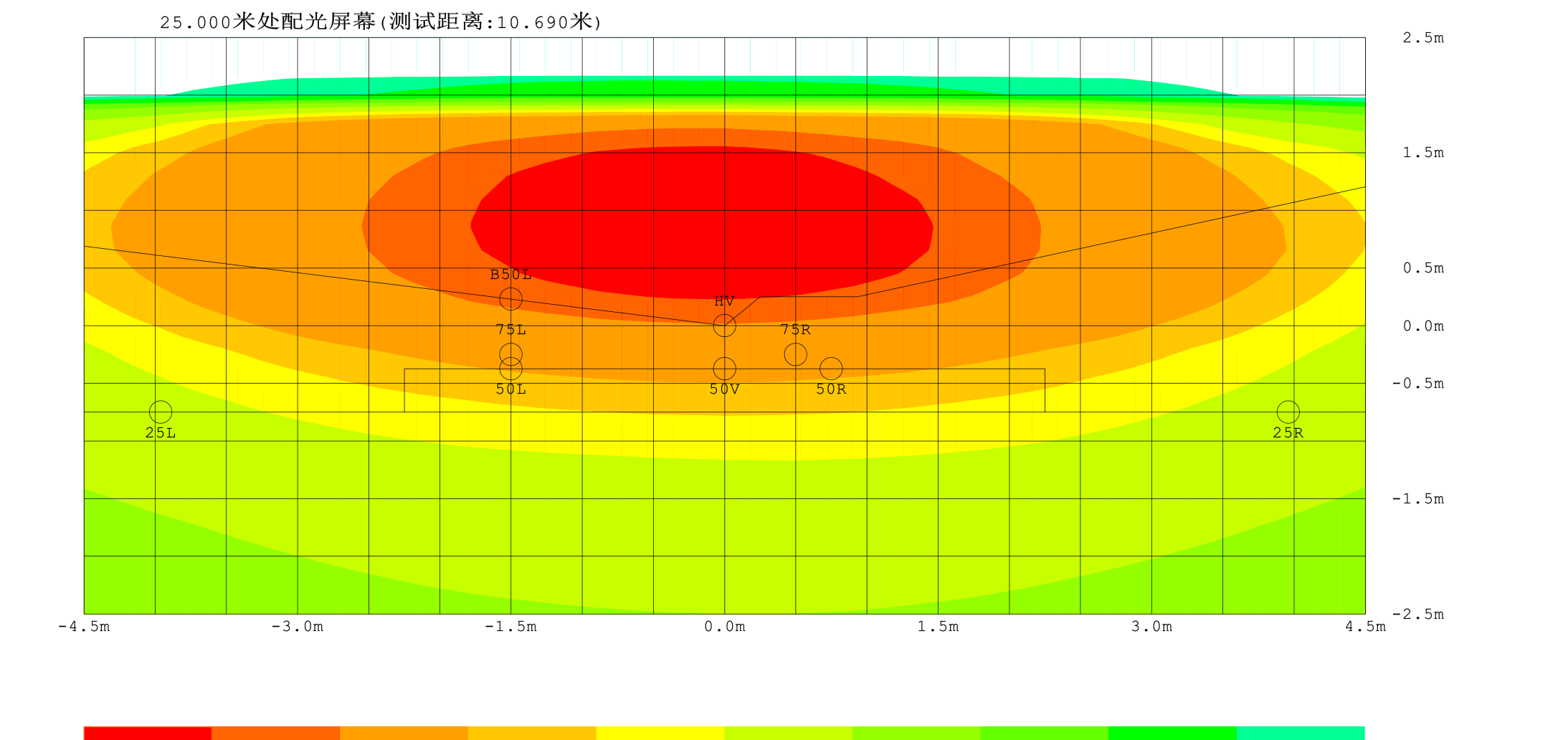

Photometric screen at 25.000 m (test distance: 10.690 m)

2.5m

1.5m

B50L 0.5m

HV

75L 75R 0.0m

50L 50V 50R -0.5m

25L 25R

-1.5m

-4.5m -3.0m -1.5m 0.0m 1.5m 3.0m 4.5m -2.5m

123.3 110.9 98.60 61.63 49.30 39.44 24.65 12.33 6.163 2.465 1.233

Vertical angle: –15.0° to 5.0° (0.5° step) · Horizontal angle: –55.0° to 55.0° (1.0° step)

Test system: EVERFINE GO-HD · Product type:

Product No.: · Model:

Tested by: AURORA

Tested by: Test Engineer · Test date: 2026-01-08

Ambient temperature: 25°C · Humidity: 65%

Product: YF-26002 · Spec:

ID3: ID4:

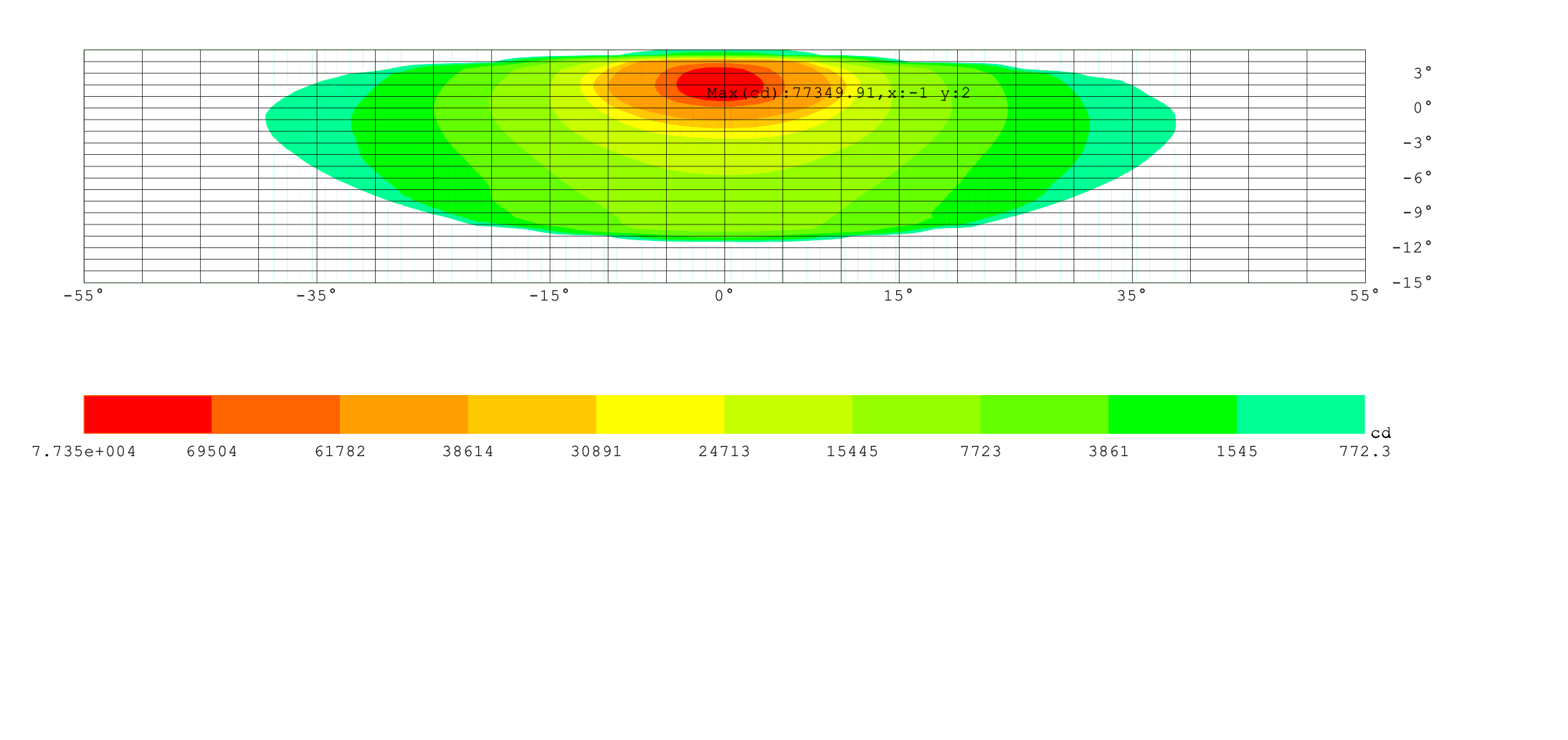

3°

Max(cd):77349.91,x:-1 y:2 0°

-3°

-6°

-9°

-12°

-55° -35° -15° 0° 15° 35° 55° -15°

7.735e+004 69504 61782 38614 30891 24713 15445 7723 3861 1545 772.3
