YF-26003 Low Beam Full-Screen Scan
201.5lx 112lx 71.66lx 22.39lx 4.479lx -10.0m
-7.0m
-4.0m
-1.0m
0.0m
1.0m
4.0m
179.1lx 89.57lx 44.79lx 11.2lx 7.0m
0.0m 15.0m 30.0m 45.0m 60.0m 75.0m 90.0m 10.0m
223.9 201.5 179.1 112.0 89.57 71.66 44.79 22.39 11.20 4.479 2.239

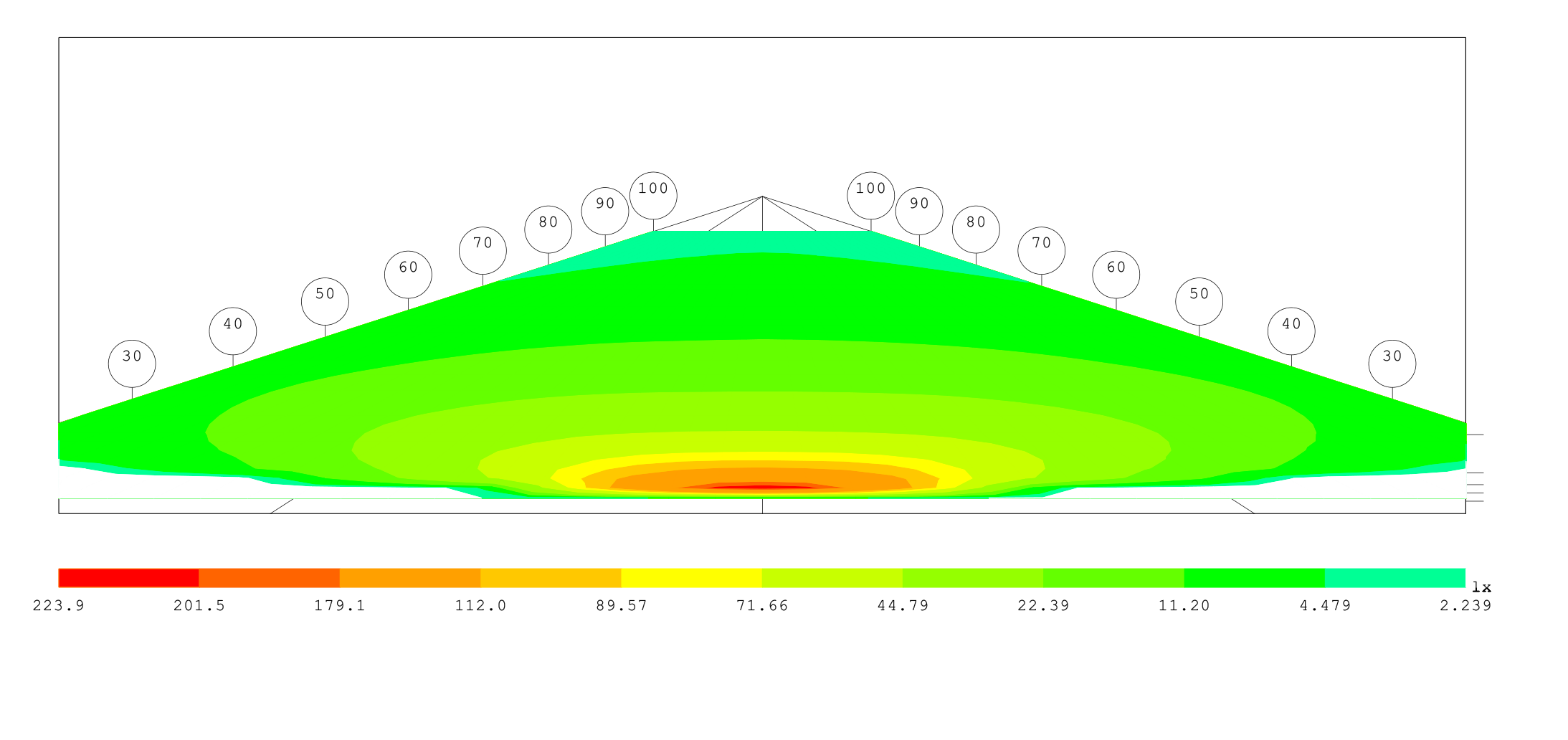

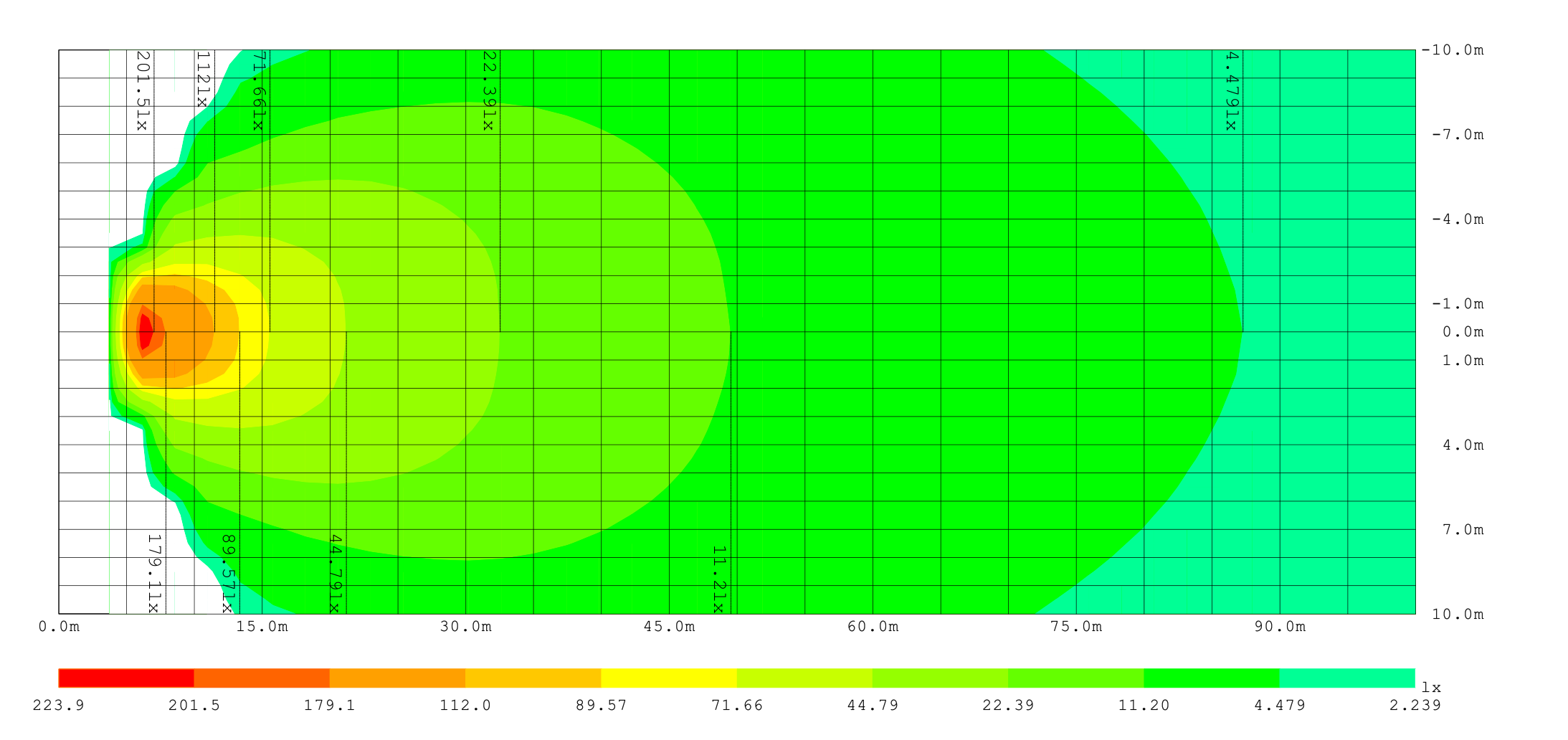

Mounting height: H = 1.000 m; road illumination area: L = 100.0 m, W = 20.0 m
Electrical: 13.198 V · 4.93 A · 65.12 W · PF 1.000
Vertical angle: –15.0° to 5.0° (0.5° step) · Horizontal angle: –55.0° to 55.0° (1.0° step)
Test system: EVERFINE GO-HD · Product type:
Product No.: · Model:
Tested by: AURORA
Tested by: Test Engineer · Test date: 2026-01-09
Ambient temperature: 25°C · Humidity: 65%
Product: YF-26003 · Spec:
ID3: ID4:
100 100
90 90
80 80
70 70
60 60
50 50
40 40
30 30
223.9 201.5 179.1 112.0 89.57 71.66 44.79 22.39 11.20 4.479 2.239
Mounting height: H = 1.000 m; road illumination area: L = 100.0 m, W = 20.0 m
Electrical: 13.198 V · 4.93 A · 65.12 W · PF 1.000
Vertical angle: –15.0° to 5.0° (0.5° step) · Horizontal angle: –55.0° to 55.0° (1.0° step)
Test system: EVERFINE GO-HD · Product type:
Product No.: · Model:
Tested by: AURORA
Tested by: Test Engineer · Test date: 2026-01-09
Ambient temperature: 25°C · Humidity: 65%
Product: YF-26003 · Spec:
ID3: ID4:

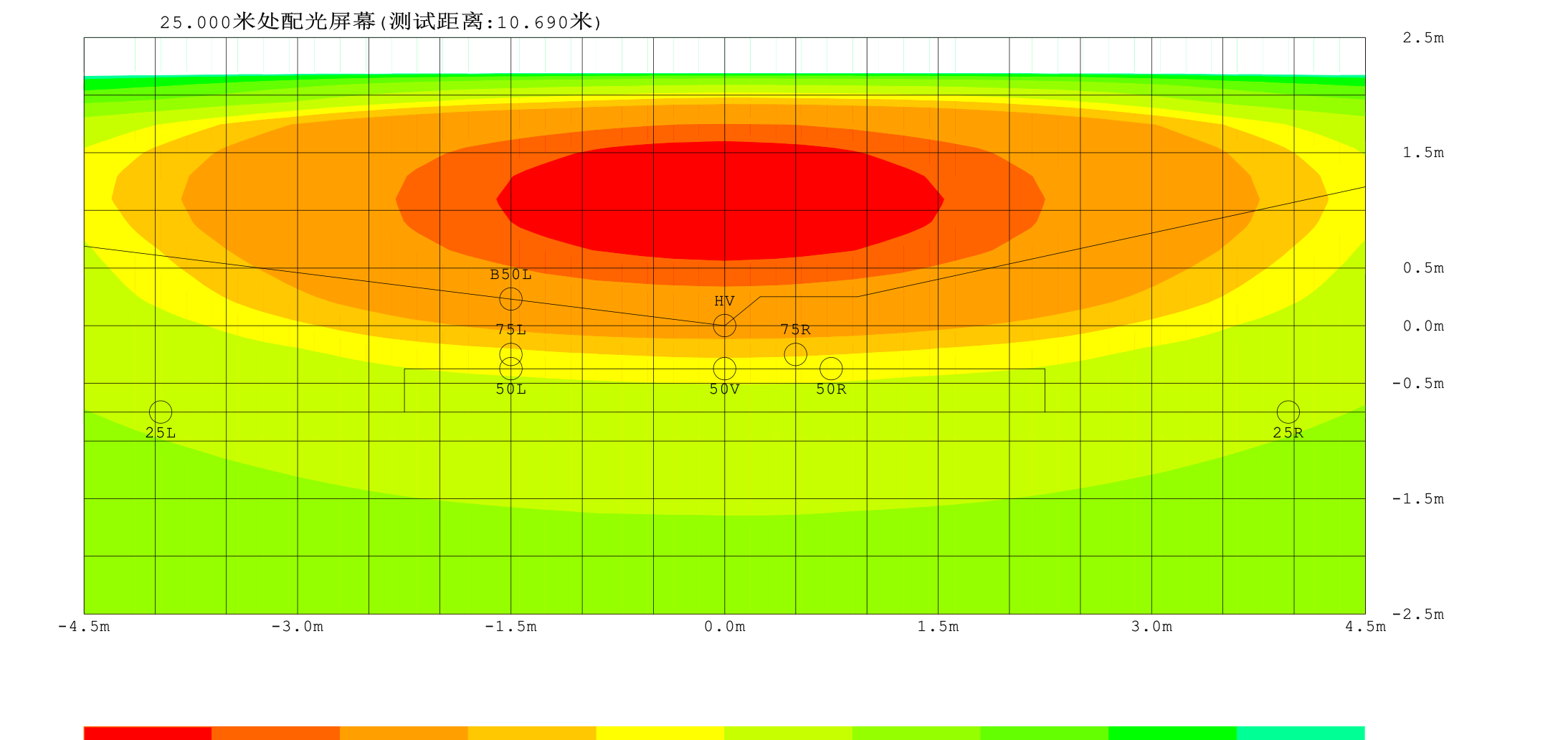

Photometric screen at 25.000 m (test distance: 10.690 m)
2.5m
1.5m
B50L 0.5m
HV
75L 75R 0.0m
50L 50V 50R -0.5m
25L 25R
-1.5m
-4.5m -3.0m -1.5m 0.0m 1.5m 3.0m 4.5m -2.5m
136.6 122.9 109.3 68.30 54.64 43.71 27.32 13.66 6.830 2.732 1.366
Vertical angle: –15.0° to 5.0° (0.5° step) · Horizontal angle: –55.0° to 55.0° (1.0° step)
Test system: EVERFINE GO-HD · Product type:
Product No.: · Model:
Tested by: AURORA
Tested by: Test Engineer · Test date: 2026-01-09
Ambient temperature: 25°C · Humidity: 65%
Product: YF-26003 · Spec:
ID3: ID4:
3°

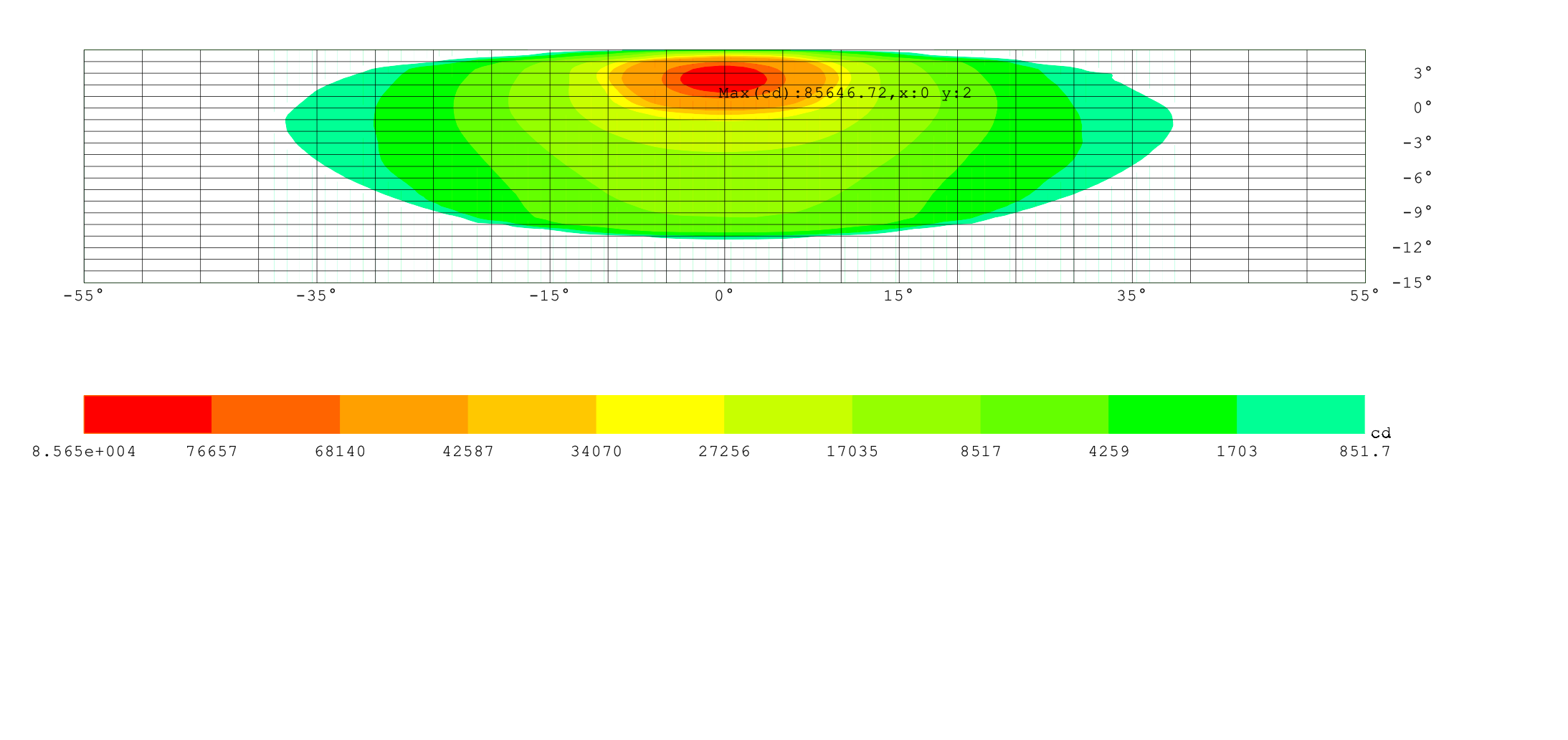

Max(cd):85646.72,x:0 y:2 0°
-3°
-6°
-9°
-12°
-55° -35° -15° 0° 15° 35° 55° -15°
8.565e+004 76657 68140 42587 34070 27256 17035 8517 4259 1703 851.7
Vertical angle: –15.0° to 5.0° (0.5° step) · Horizontal angle: –55.0° to 55.0° (1.0° step)
Test system: EVERFINE GO-HD · Product type:
Product No.: · Model:
Tested by: AURORA
Tested by: Test Engineer · Test date: 2026-01-09
Ambient temperature: 25°C · Humidity: 65%
Product: YF-26003 · Spec:
ID3: ID4:
