Internal Test Report · Quality Validation

LED Light Bar Assembly Light Color Test Report 20260723013

Report No.:— Report Type:Light Color Release:Sanitized public version

Page 1 of 4

Test Request Information:

Requesting Dept.	Quality Dept.
Reason	Sample Testing

Sample Information:

Test Requirements:

Test No.	Test Item	Reference Standard	Test Requirement
1	Light Color	Test sample light color per ECE R48 chromaticity requirements.	Color coordinates shall meet ECE R48 requirements for white and amber light.

Test Results: ，、 ECEECER48 。R48 ，

Tested by: Test Engineer Reviewed by:

Approved by: Date: 2026.07.23

Page 2 of 4

Test Samples:

Sample No.	Sample Name	Sample Model	Sample Qty
1	LED Light Bar Assembly	******、 ******	2 PCS

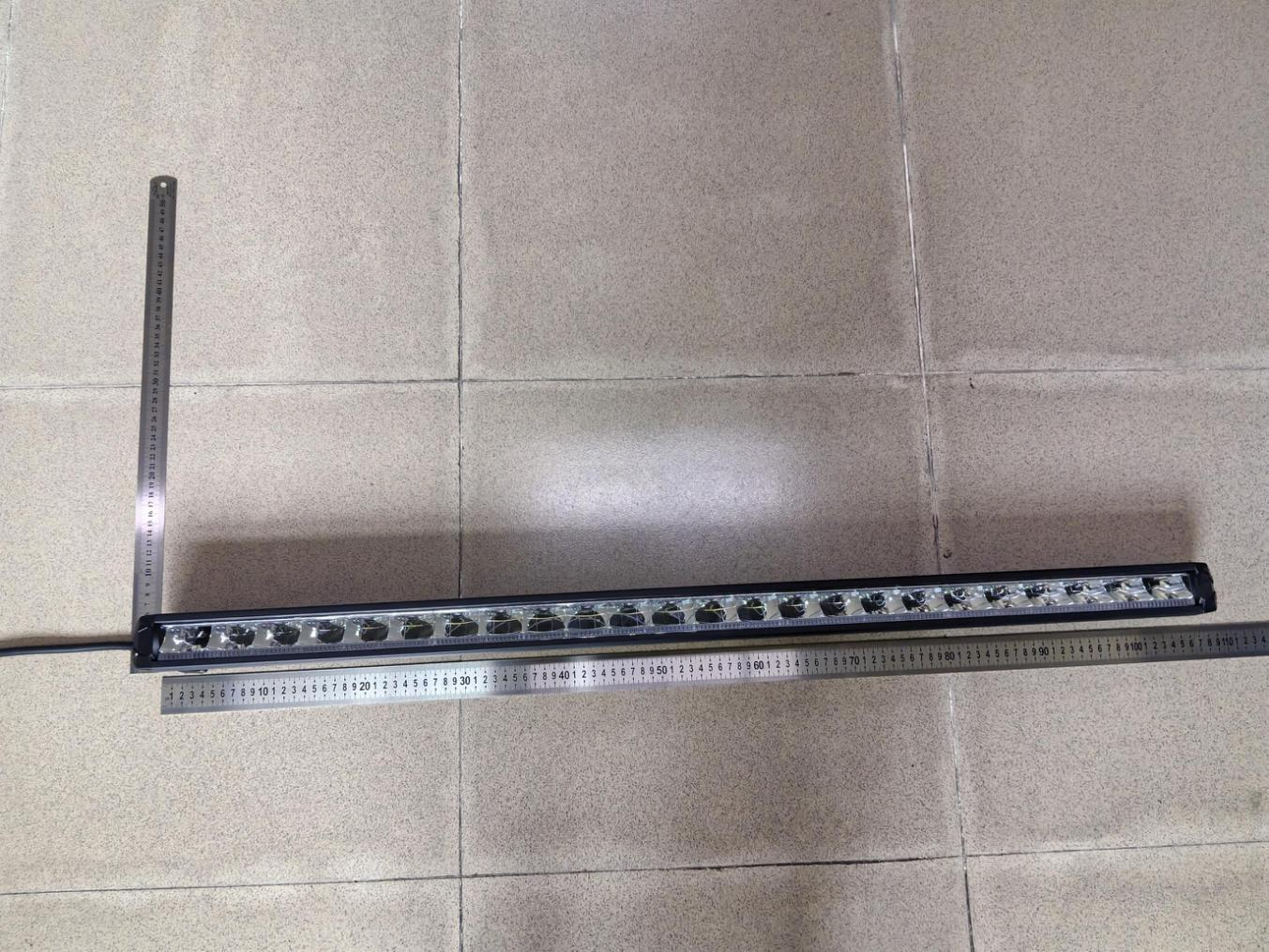

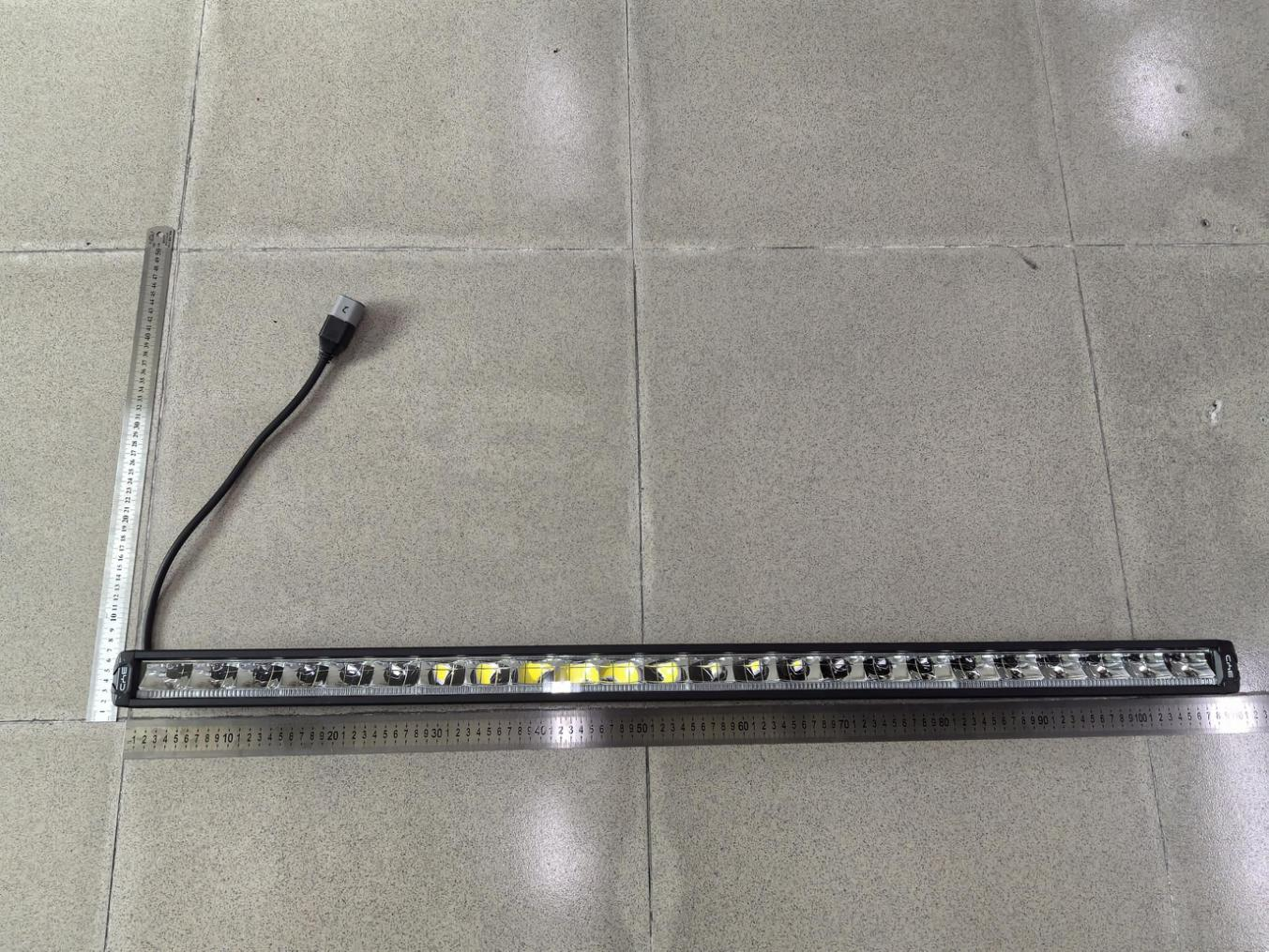

Sample Photos Before Test:

Sample 1 · Sample 2

Test Procedure: Light Color

1、 Test Equipment:

Equipment Name	Equipment No.	Calibration Valid Until
Integrating sphere	P185387CJ391120	2027.05.07

2、 Test Conditions:

Test environment: temperature (23±2)°C, relative humidity (50±5)%.

Page 3 of 4

3、 Test Basis:

Test sample light color per ECE R48 chromaticity requirements.

4、 Test Steps:

1、 Light the sample at rated voltage until stable.

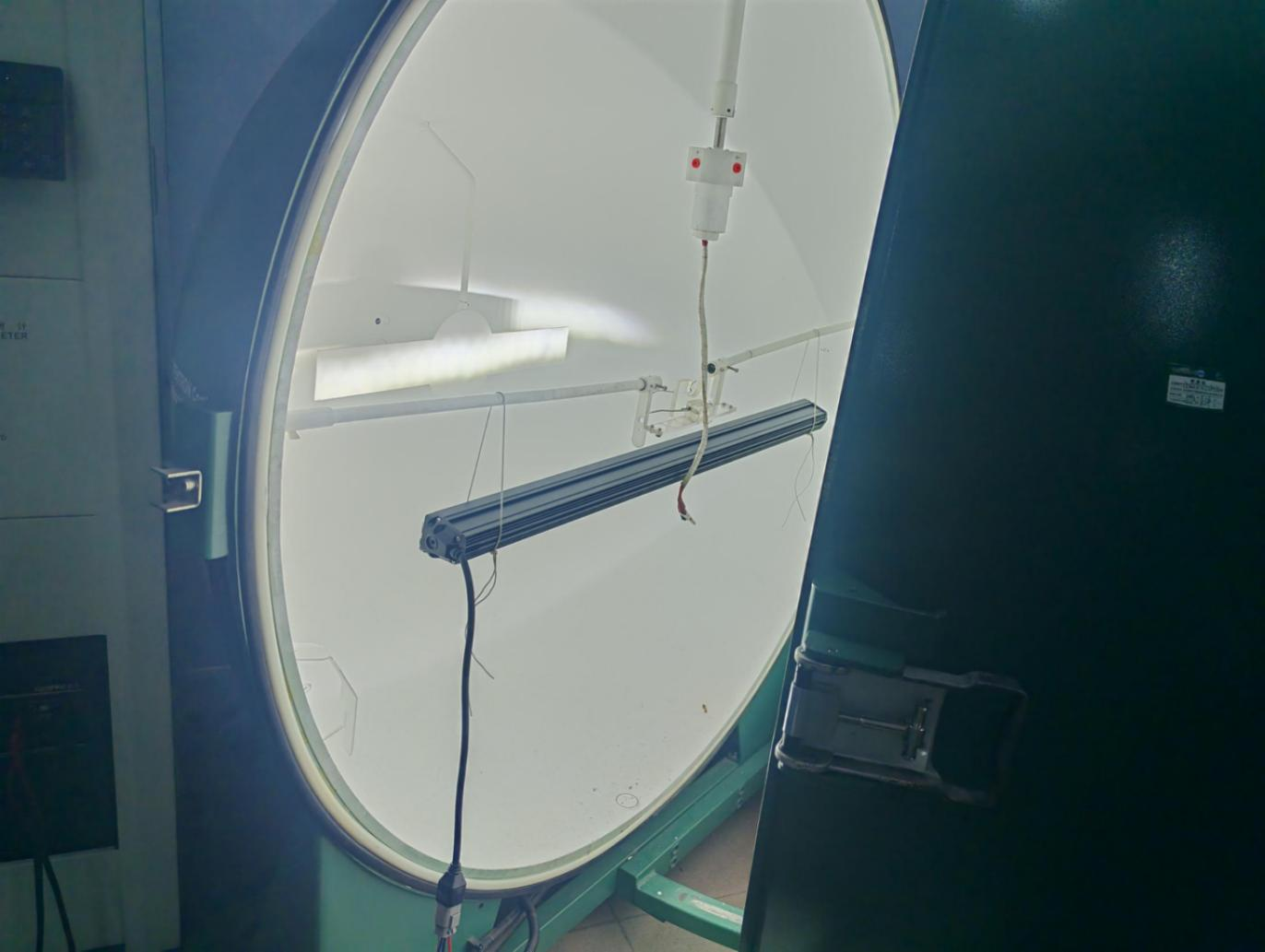

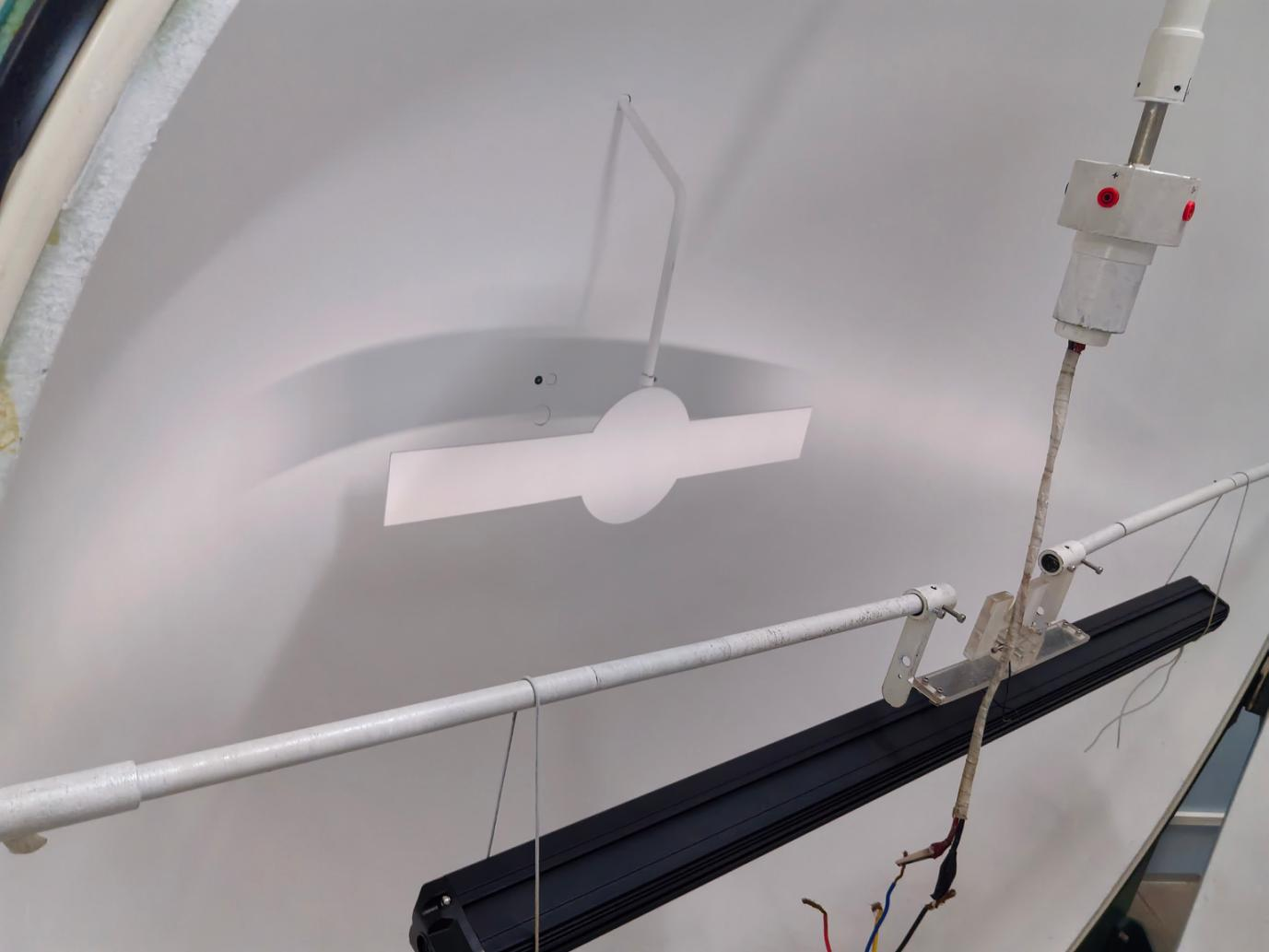

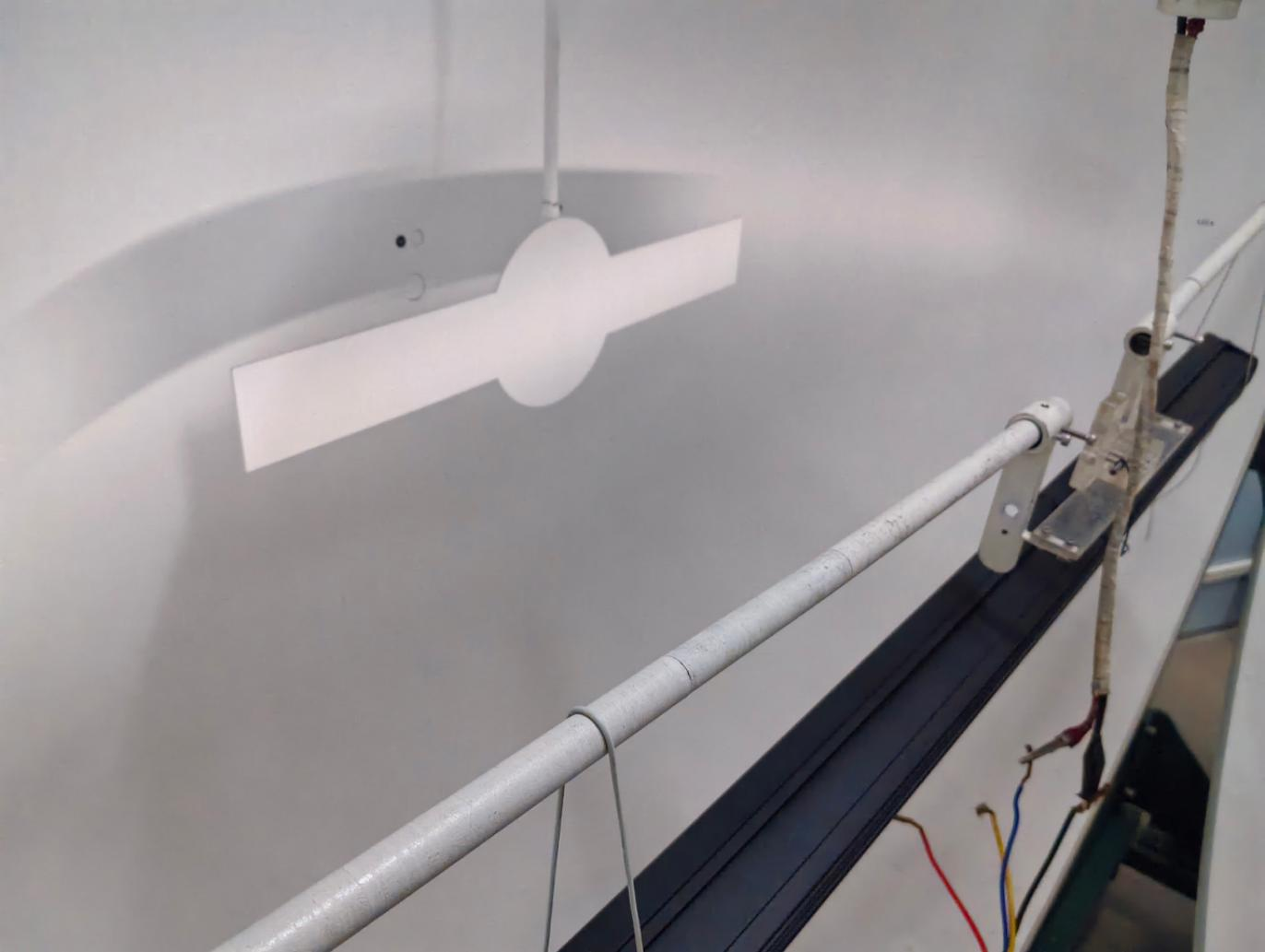

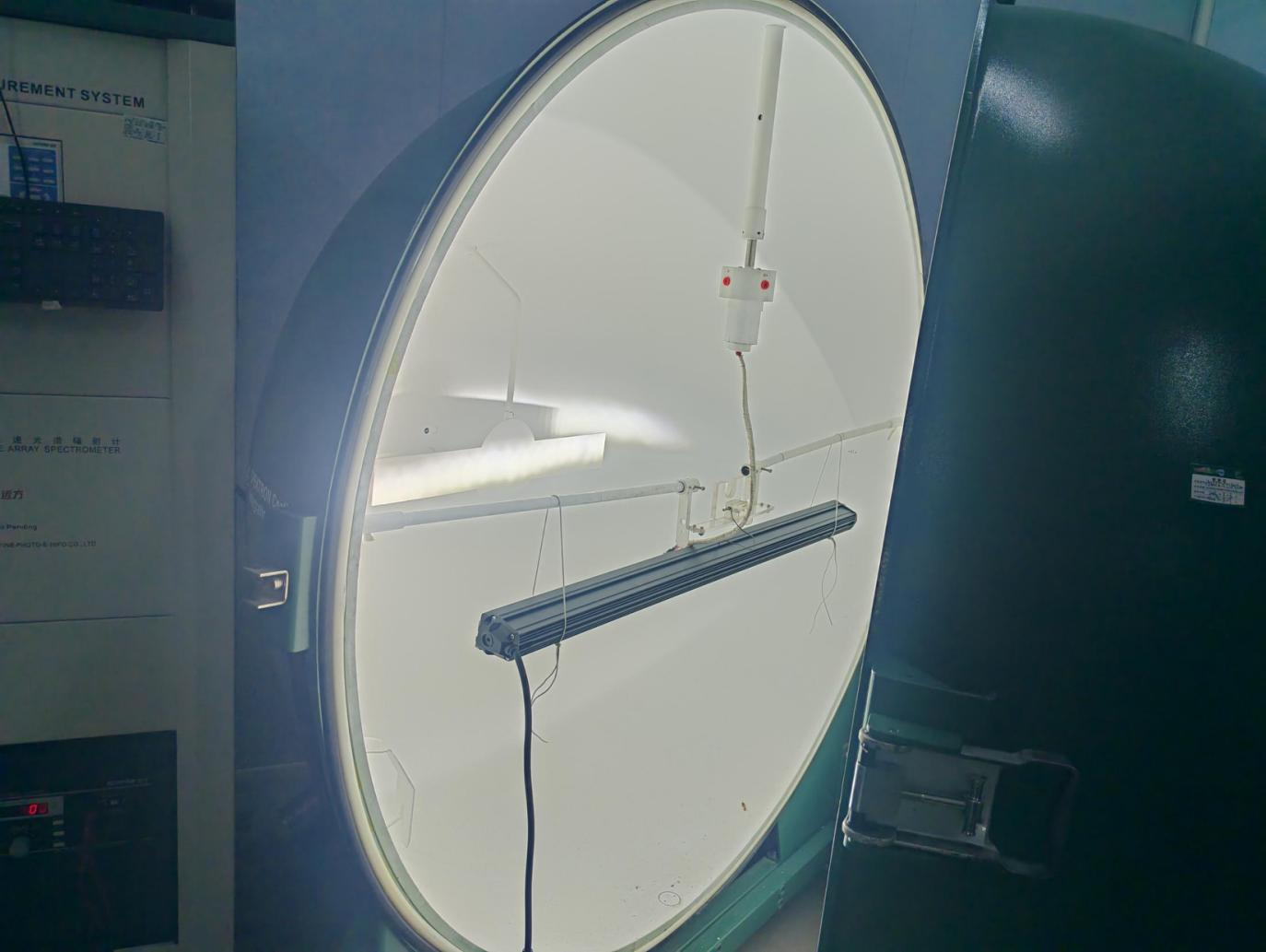

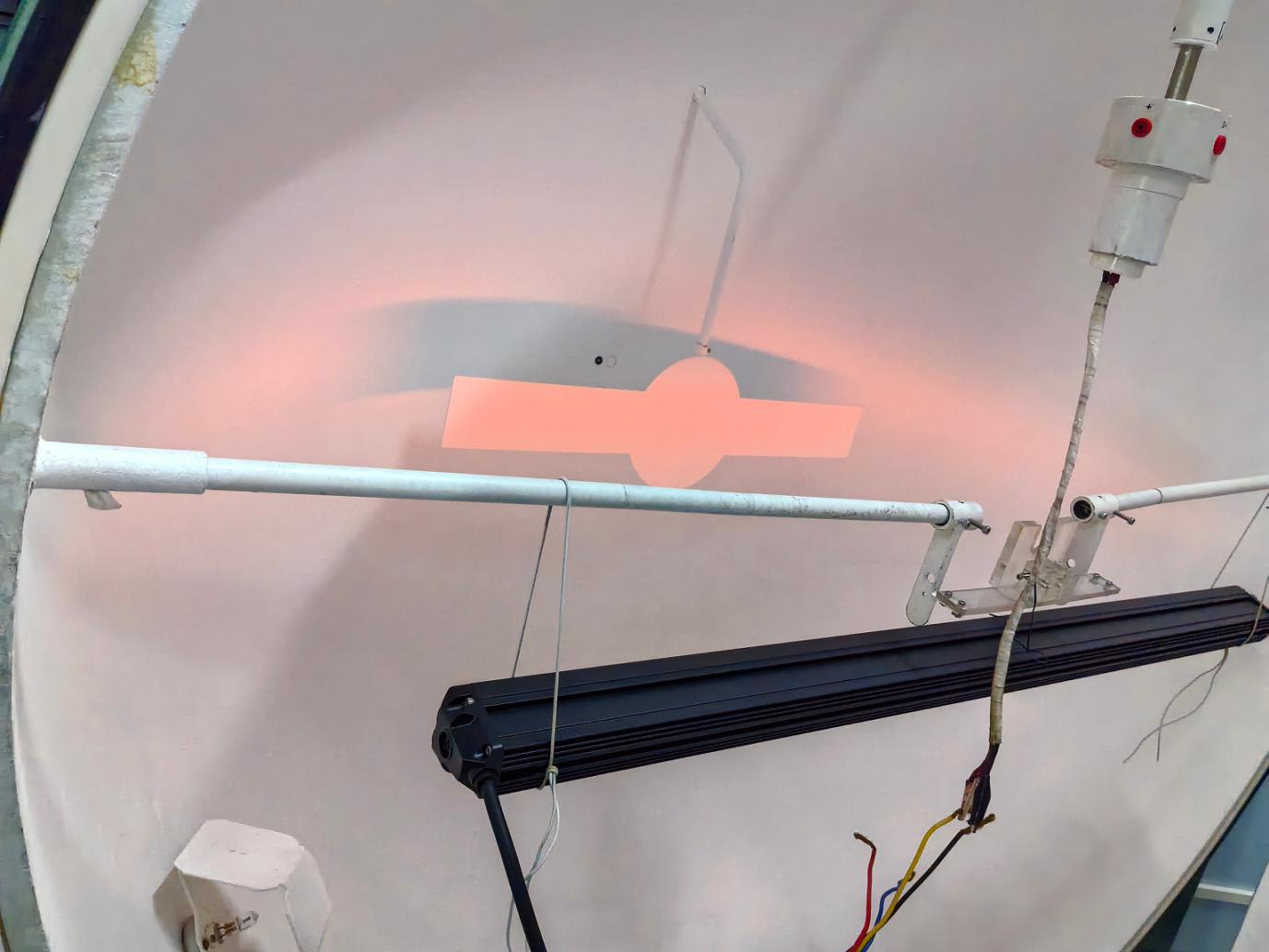

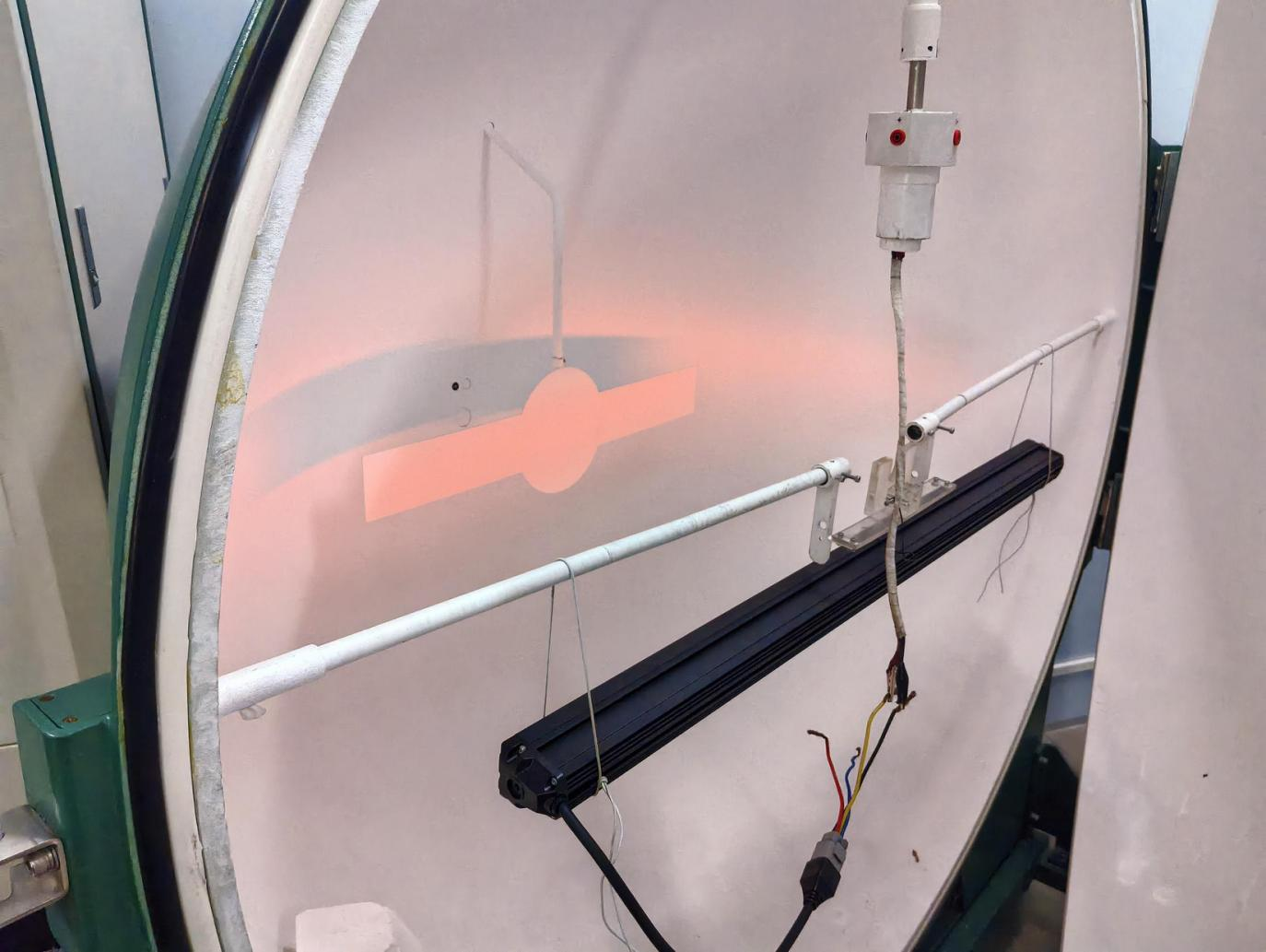

2、 Mount the sample on the integrating sphere system, aligned with the baffle.

3、 Start the test and record the results.

4、 Compare measured chromaticity coordinates with the ECE R48 white or amber light zone boundaries.

5、 Determine whether the chromaticity coordinates fall within the specified zone and record the result.

5、 Test Results: see table below

Sample No.	Test Item	Test Requirement	Test Result

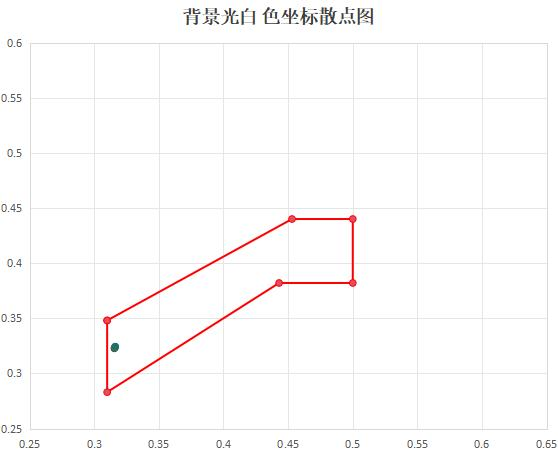

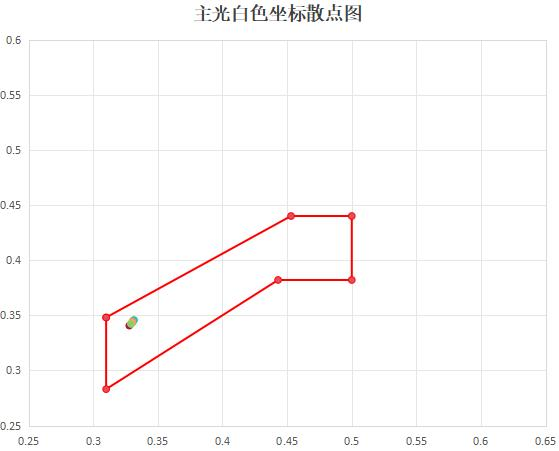

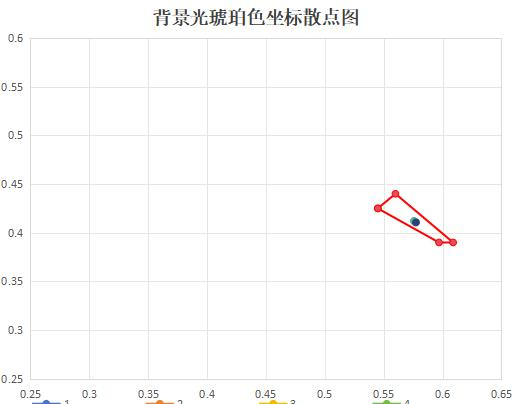

1	Light Color	Color coordinates shall meet ECE R48 requirements for white and amber light.	Test passed. Main beam and white background light meet ECE R48 white chromaticity requirements; amber background light meets ECE R48 amber requirements.
